View larger
Images are for illustrative purposes only. Please refer to data sheet for details

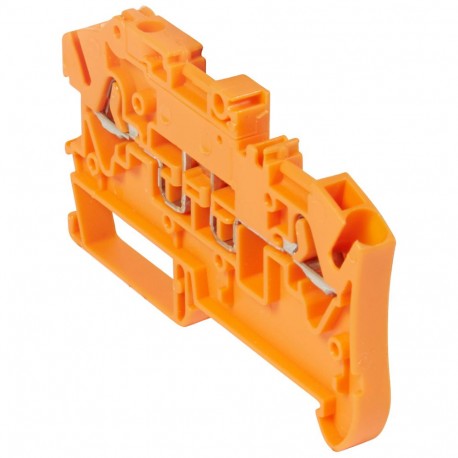

037286 LEGRAND B. VIKING3 RES NAR SECT 2,5MM2
037286
037286
LEGRAND
20 Pcs.
B. VIKING3 RES NAR SECT 2,5MM2
Viking 3 Disconnection Terminal Block 2.5mm² Spring Connection 6mm Orange for Circuit Not Broken with Mini Lever
Viking 3 Terminal with Spring - 2.5² - 6 Step
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Screwless connection system, stainless steel spring type Compatible with either 2 rigid copper cables or flexible cables (0.5mm² - 16mm²) with or without ferrules Direct tool-free insertion of a rigid cable. Direct tool-free insertion of a flexible cable with ferrule, up to 6mm width Facility for 2 bridging combs Compatible with rails EN 60715 depth 7.5mm and 15mm Disconnection 1 connection - 2 cables Disconnection by means of blade type lever, handle lever or mini lever (with tool)
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5-2.5 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 0.5-2.5 mm² |
| Connectable conductor cross section solid-core | 0.5-2.5 mm² |
| Connectable conductor cross section multi-wired | 0.5-2.5 mm² |
| Rated current In | 15 A |
| Rated voltage | 500 V |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 6 mm |
| Height | 46.5 mm |
| Depth | 80 mm |
| Explosion-tested version 'Ex e' | No |
| Closing plate required | Yes |
| Colour | Orange |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
| Feature Name | Feature Value |
|---|---|
| Number of clamp positions per level (EF002660) | 2 |
| Connectable conductor cross section solid-core (EF007337) | 0.5 mm² |
| Internally connected stages (EF002661) | No |
| Height (EF000040) | 46.5 mm |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.5 mm² |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Explosion-tested version 'Ex e' (EF008498) | No |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Operating temperature (EF002393) | -5 °C |
| Rated current In (EF008250) | 15 A |
| Closing plate required (EF002525) | Yes |
| Depth (EF000049) | 80 mm |
| Type of electrical connection 1 (EF002526) | Spring clamp connection |
| Colour (EF000007) | Orange |
| Rated voltage (EF000228) | 500 V |
| Width (EF000008) | 6 mm |
| Number of levels (EF002659) | 1 |
| Type of electrical connection 2 (EF002527) | Spring clamp connection |
