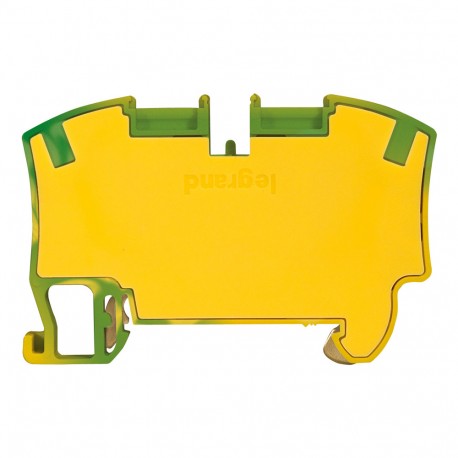

LEGRAND 037273 037273 LEGRAND B. VIKING3 RES V/A P10 10MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037273 LEGRAND B. VIKING3 RES V/A P10 10MM2

037273

037273

LEGRAND

20 Pcs.

B. VIKING3 RES V/A P10 10MM2 Viking 3 Protection Terminal Block 10mm² Spring Connection 2 Cable 1 Entry 1 Exit Metal Base 10mm Green/Yellow

Automation > Feed-through terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured as a B. Viking3 residual voltage and current component from Legrand, part number 037273 serves to distribute electrical potential while maintaining robust mechanical connections in control panels. Terminal blocks secure multiple wires to streamline installation testing, maintenance, and troubleshooting across complex automation setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of clamp positions per level (EF002660): 2
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Internally connected stages (EF002661): No
  • Height (EF000040): 49 mm
  • Material insulation body (EF007543): Thermoplastic
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Explosion-tested version 'Ex e' (EF008498): Yes
  • Connectable conductor cross section multi-wired (EF007343): 0.75 mm²
  • Operating temperature (EF002393): -5 °C
  • Rated current In (EF008250): 57 A
  • Closing plate required (EF002525): No
  • Depth (EF000049): 74.5 mm
  • Type of electrical connection 1 (EF002526): Spring clamp connection
  • Colour (EF000007): Green/yellow
  • Rated voltage (EF000228): 800 V
  • Width (EF000008): 10 mm

More info

▲
Screwless connection system, stainless steel spring type Compatible with either 2 rigid copper cables or flexible cables (0.5mm² - 16mm²) with or without ferrules Direct tool-free insertion of a rigid cable. Direct tool-free insertion of a flexible cable with ferrule, up to 6mm width Facility for 2 bridging combs Compatible with rails 2 EN 60715 depth 7.5mm and 15mm Protection Metal base Screwless fixing on rail PEN from 10mm² Built-in end cap
Connectable conductor cross section fine-strand without cable end sleeve0.75-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.75-10 mm²
Connectable conductor cross section solid-core0.75-10 mm²
Connectable conductor cross section multi-wired0.75-10 mm²
Rated current In57 A
Rated voltage800 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width10 mm
Height49 mm
Depth74.5 mm
Explosion-tested version 'Ex e'Yes
Closing plate requiredNo
ColourGreen/yellow
Internally connected stagesNo
Inflammability class of insulation material according to UL 94V2
