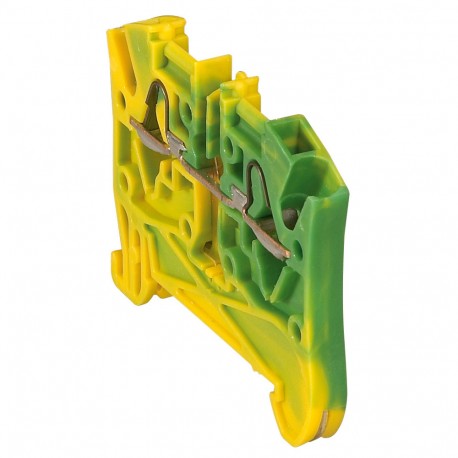

LEGRAND 037270 037270 LEGRAND B. VIKING3 RES V/A TIER P5 4MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037270 LEGRAND B. VIKING3 RES V/A TIER P5 4MM2

037270

037270

LEGRAND

60 Pcs.

B. VIKING3 RES V/A TIER P5 4MM2 Viking 3 Protection Terminal Block 4mm² Spring Connection 2 Cable 1 Entry 1 Exit Metal Base 5mm Green/Yellow Viking 3 terminal block with spring - 4² - step 5

Automation > Feed-through terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 037270 is a Viking3 terminal block designed to provide secure, vibration-resistant wire termination and circuit organization inside electrical enclosures. Industrial terminal blocks ensure clean separation of potentials and maintain dependable contact integrity across demanding operational environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of clamp positions per level (EF002660): 2
  • Connectable conductor cross section solid-core (EF007337): 0.5 mm²
  • Internally connected stages (EF002661): No
  • Height (EF000040): 42 mm
  • Material insulation body (EF007543): Thermoplastic
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Explosion-tested version 'Ex e' (EF008498): Yes
  • Connectable conductor cross section multi-wired (EF007343): 0.5 mm²
  • Operating temperature (EF002393): -5 °C
  • Closing plate required (EF002525): Yes
  • Depth (EF000049): 54 mm
  • Type of electrical connection 1 (EF002526): Spring clamp connection
  • Colour (EF000007): Green/yellow
  • Rated voltage (EF000228): 800 V
  • Width (EF000008): 5 mm
  • Number of levels (EF002659): 1

More info

▲
Screwless connection system, stainless steel spring type Compatible with either 2 rigid copper cables or flexible cables (0.5mm² - 16mm²) with or without ferrules Direct tool-free insertion of a rigid cable. Direct tool-free insertion of a flexible cable with ferrule, up to 6mm width Facility for 2 bridging combs Compatible with rails 2 EN 60715 depth 7.5mm and 15mm Protection Metal base Screwless fixing on rail PEN from 10mm²
Connectable conductor cross section fine-strand without cable end sleeve0.5-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5-2.5 mm²
Connectable conductor cross section solid-core0.5-6 mm²
Connectable conductor cross section multi-wired0.5-4 mm²
Rated voltage800 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width5 mm
Height42 mm
Depth54 mm
Explosion-tested version 'Ex e'Yes
Closing plate requiredYes
ColourGreen/yellow
Internally connected stagesNo
Inflammability class of insulation material according to UL 94V2
