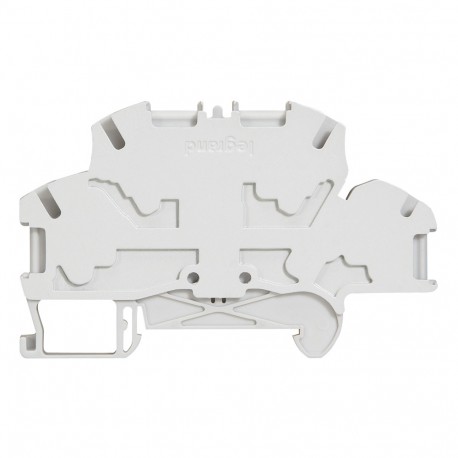

LEGRAND 037268 037268 LEGRAND B. VIKING3 RES PAS 2U P6 2P4MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037268 LEGRAND B. VIKING3 RES PAS 2U P6 2P4MM2

037268

037268

LEGRAND

50 Pcs.

B. VIKING3 RES PAS 2U P6 2P4MM2 Viking 3 Connection Terminal Block 4mm² Spring Connection 4 Cable 2 Level 6mm Grey Viking 3 Terminal Block with Spring - 4² - 6 Step

Automation > Feed-through terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 037268 LEGRAND B. VIKING3 RES PAS 2U P6 2P4MM2 utilizes spring clamp technology to establish rapid, vibration-resistant electrical connections inside automation switchboards. Spring-loaded terminal blocks expedite wiring tasks in harsh environments where thermal expansion or mechanical shock could loosen traditional screw fasteners. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of clamp positions per level (EF002660): 2
  • Connectable conductor cross section solid-core (EF007337): 0.5 mm²
  • Internally connected stages (EF002661): No
  • Height (EF000040): 56 mm
  • Material insulation body (EF007543): Thermoplastic
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Explosion-tested version 'Ex e' (EF008498): Yes
  • Connectable conductor cross section multi-wired (EF007343): 0.5 mm²
  • Operating temperature (EF002393): -5 °C
  • Rated current In (EF008250): 32 A
  • Closing plate required (EF002525): No
  • Depth (EF000049): 90 mm
  • Type of electrical connection 1 (EF002526): Spring clamp connection
  • Colour (EF000007): Grey
  • Rated voltage (EF000228): 500 V
  • Width (EF000008): 6 mm

More info

▲
Screwless connection system, stainless steel spring type Compatible with either 2 rigid copper cables or flexible cables (0.5mm² - 16mm²) with or without ferrules Direct tool-free insertion of a rigid cable. Direct tool-free insertion of a flexible cable with ferrule, up to 6mm width Facility for 2 bridging combs Compatible with rails 2 EN 60715 depth 7.5mm and 15mm Connection Grey for standard circuit Blue for neutral conductor Orange for circuit not broken by the master isolating device Built-in end cap
Connectable conductor cross section fine-strand without cable end sleeve0.5-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5-4 mm²
Connectable conductor cross section solid-core0.5-6 mm²
Connectable conductor cross section multi-wired0.5-4 mm²
Rated current In32 A
Rated voltage500 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels2
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width6 mm
Height56 mm
Depth90 mm
Explosion-tested version 'Ex e'Yes
Closing plate requiredNo
ColourGrey
Internally connected stagesNo
Inflammability class of insulation material according to UL 94V2
