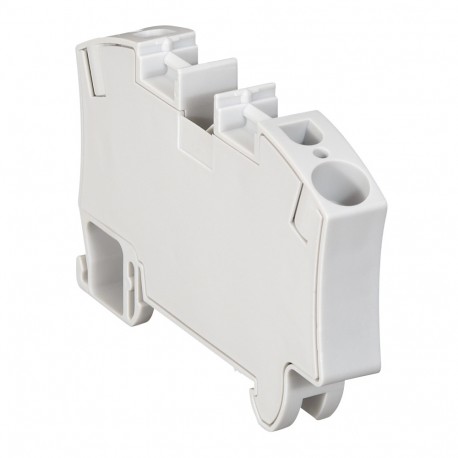

037263 LEGRAND B. VIKING3 RES PAS 1U P10 10MM2
037263
037263
LEGRAND
40 Pcs.
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 037263 is a residual current device engineered to protect electrical circuits and personnel from earth leakage faults in industrial installations. Ground fault protection equipment is essential for preventing equipment damage and mitigating shock hazards across automated systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of clamp positions per level (EF002660): 2
- Connectable conductor cross section solid-core (EF007337): 0.75 mm²
- Internally connected stages (EF002661): No
- Height (EF000040): 49 mm
- Material insulation body (EF007543): Thermoplastic
- Mounting method (EF000003): DIN rail (top hat rail) 35 mm
- Explosion-tested version 'Ex e' (EF008498): Yes
- Connectable conductor cross section multi-wired (EF007343): 0.75 mm²
- Operating temperature (EF002393): -5 °C
- Rated current In (EF008250): 57 A
- Closing plate required (EF002525): No
- Depth (EF000049): 74.5 mm
- Type of electrical connection 1 (EF002526): Spring clamp connection
- Colour (EF000007): Grey
- Rated voltage (EF000228): 800 V
- Width (EF000008): 10 mm
More info
▲| Connectable conductor cross section fine-strand without cable end sleeve | 0.75-10 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 0.75-10 mm² |
| Connectable conductor cross section solid-core | 0.75-10 mm² |
| Connectable conductor cross section multi-wired | 0.75-10 mm² |
| Rated current In | 57 A |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 10 mm |
| Height | 49 mm |
| Depth | 74.5 mm |
| Explosion-tested version 'Ex e' | Yes |
| Closing plate required | No |
| Colour | Grey |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
