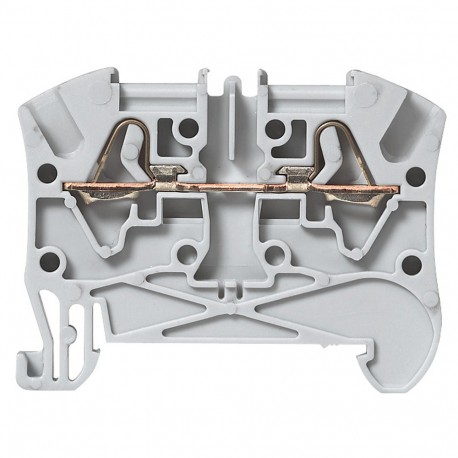

037260 LEGRAND B. VIKING3 RES PAS 1U P5 4MM2
037260
037260
LEGRAND
60 Pcs.
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand 037260 B. VIKING3 RES PAS 1U P5 4MM2 terminal block provides secure wire-to-wire connections on standard DIN rail assemblies, ensuring stable electrical performance in industrial control panels. These components organize branching circuits and protect connection points from mechanical disruption in automated manufacturing environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of clamp positions per level: 2
- Connectable conductor cross section solid-core: 0.5 mm²
- Internally connected stages: No
- Height: 42 mm
- Material insulation body: Thermoplastic
- Mounting method: DIN rail (top hat rail) 35 mm
- Explosion-tested version 'Ex e': Yes
- Connectable conductor cross section multi-wired: 0.5 mm²
- Operating temperature: -5 °C
- Rated current In: 32 A
- Closing plate required: Yes
- Depth: 54 mm
- Type of electrical connection 1: Spring clamp connection
- Colour: Grey
- Rated voltage: 800 V
- Width: 5 mm
More info
▲| Connectable conductor cross section fine-strand without cable end sleeve | 0.5-6 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 0.5-2.5 mm² |
| Connectable conductor cross section solid-core | 0.5-6 mm² |
| Connectable conductor cross section multi-wired | 0.5-4 mm² |
| Rated current In | 32 A |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 5 mm |
| Height | 42 mm |
| Depth | 54 mm |
| Explosion-tested version 'Ex e' | Yes |
| Closing plate required | Yes |
| Colour | Grey |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
