View larger
Images are for illustrative purposes only. Please refer to data sheet for details

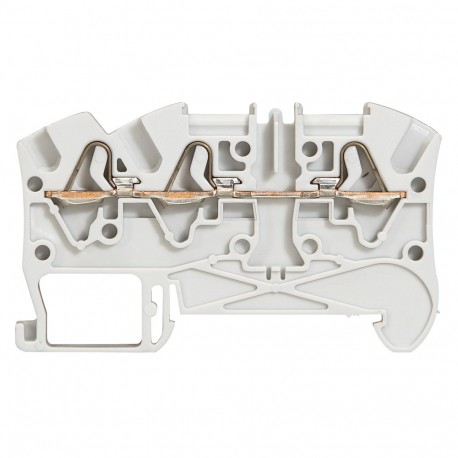

037243 LEGRAND B. VIKING3 RES PAS P6 1E2S 4MM2
037243
037243
LEGRAND
50 Pcs.
B. VIKING3 RES PAS P6 1E2S 4MM2
Viking 3 Connection Terminal Block 4mm² Spring Connection 3 Cable 1 Entry 2 Exit 6mm Grey
Viking 3 Terminal Block with Spring - 4² - 6 Step
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Screwless connection system, stainless steel spring type Compatible with either 2 rigid copper cables or flexible cables (0.5mm² - 16mm²) with or without ferrules Direct tool-free insertion of a rigid cable. Direct tool-free insertion of a flexible cable with ferrule, up to 6mm width Facility for 2 bridging combs Compatible with rails 2 EN 60715 depth 7.5mm and 15mm Connection Grey for standard circuit Blue for neutral conductor Orange for circuit not broken by the master isolating device Built-in end cap
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5-6 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 0.5-4 mm² |
| Connectable conductor cross section solid-core | 0.5-6 mm² |
| Connectable conductor cross section multi-wired | 0.5-4 mm² |
| Rated current In | 32 A |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 3 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 6 mm |
| Height | 42 mm |
| Depth | 69.5 mm |
| Explosion-tested version 'Ex e' | Yes |
| Closing plate required | No |
| Colour | Grey |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
| Feature Name | Feature Value |
|---|---|
| Number of clamp positions per level (EF002660) | 3 |
| Connectable conductor cross section solid-core (EF007337) | 0.5 mm² |
| Internally connected stages (EF002661) | No |
| Height (EF000040) | 42 mm |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.5 mm² |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Explosion-tested version 'Ex e' (EF008498) | Yes |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Operating temperature (EF002393) | -5 °C |
| Rated current In (EF008250) | 32 A |
| Closing plate required (EF002525) | No |
| Depth (EF000049) | 69.5 mm |
| Type of electrical connection 1 (EF002526) | Spring clamp connection |
| Colour (EF000007) | Grey |
| Rated voltage (EF000228) | 800 V |
| Width (EF000008) | 6 mm |
| Number of levels (EF002659) | 1 |
| Type of electrical connection 2 (EF002527) | Spring clamp connection |
