View larger
Images are for illustrative purposes only. Please refer to data sheet for details

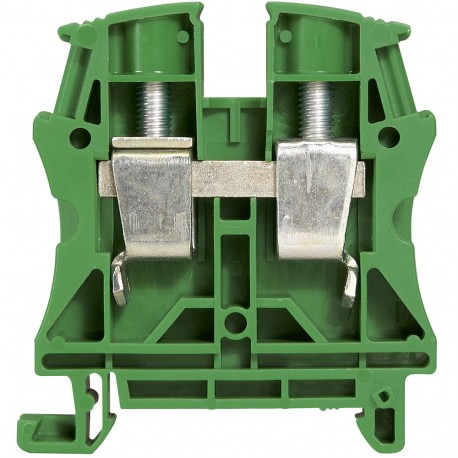

037198 LEGRAND BORNA VIKING3 EARTH AIS 16MM2
037198
037198
LEGRAND
20 Pcs.
BORNA VIKING3 EARTH AIS 16MM2
Terminal block Viking 3 - screw - 1 connect - 1 entry/1 outlet - pitch 12-green
Viking 3 terminal block with screw - 16² - 12 pitch
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)20
- Volume (dm3)1.523
- Weight (g)811.00
Product characteristics
Connecting- Grey for standard circuit, blue for neutral conductor, orange for circuit not broken by the master isolating device, red for special circuits (safety, protected, etc), green for protection conductor class II equivalent assemblies
- Colour : Green
- Nominal cross-section : 16 mm²
- Capacity – Rigid wire : 1.5 to 25 mm²
- Capacity – Flexible wire with or without ferrules : 4 to 16 mm²
- Pitch : 12 mm
General characteristics
Viking™ 3 terminal blocks with screw connection - for copper cables- Used to make the electrical connection between 2 flexible copper wires with or without ferrules or 2 rigid copper wires
- 2 areas for automatic insertion bridging combs up to 8 pitch (upper level only for multi-level blocks)
- For rails depth 15 mm, EN 60715 depth 7.5 mm and 15 mm
| Feature Name | Feature Value |
|---|---|
| Number of clamp positions per level (EF002660) | 2 |
| Connectable conductor cross section solid-core (EF007337) | 1.5 mm² |
| Internally connected stages (EF002661) | No |
| Height (EF000040) | 63 mm |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 4 mm² |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 1.5 mm² |
| Explosion-tested version 'Ex e' (EF008498) | Yes |
| Connectable conductor cross section multi-wired (EF007343) | 4 mm² |
| Operating temperature (EF002393) | -5 °C |
| Rated current In (EF008250) | 76 A |
| Closing plate required (EF002525) | Yes |
| Depth (EF000049) | 57 mm |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Colour (EF000007) | Green |
| Rated voltage (EF000228) | 800 V |
| Width (EF000008) | 12 mm |
| Number of levels (EF002659) | 1 |
| Type of electrical connection 2 (EF002527) | Screw connection |
