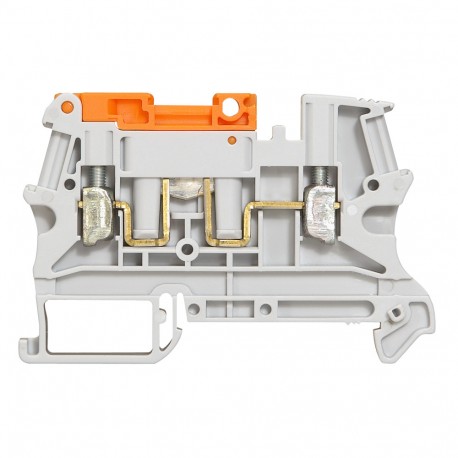

LEGRAND 037184 037184 LEGRAND BORNA VIKING3 SEC 4MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037184 LEGRAND BORNA VIKING3 SEC 4MM2

037184

037184

LEGRAND

20 Pcs.

BORNA VIKING3 SEC 4MM2 Viking 3 Disconnection Terminal Block 2.5mm² Screw Connection 6mm Grey for Standard Circuit with Mini Lever Viking 3 terminal block with screw - 4² - 6 step

Automation > Feed-through terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 037184 Viking3 section terminal block provides secure wire termination for standard industrial control panel wiring. Panel builders utilize these components on DIN rails to organize internal connections, distribute power, and route control signals safely across complex machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of clamp positions per level (EF002660): 2
  • Connectable conductor cross section solid-core (EF007337): 0.25 mm²
  • Internally connected stages (EF002661): No
  • Height (EF000040): 46.5 mm
  • Material insulation body (EF007543): Thermoplastic
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Explosion-tested version 'Ex e' (EF008498): No
  • Connectable conductor cross section multi-wired (EF007343): 0.25 mm²
  • Operating temperature (EF002393): -5 °C
  • Rated current In (EF008250): 15 A
  • Closing plate required (EF002525): Yes
  • Depth (EF000049): 71.5 mm
  • Type of electrical connection 1 (EF002526): Screw connection
  • Colour (EF000007): Grey
  • Rated voltage (EF000228): 500 V
  • Width (EF000008): 6 mm

More info

▲
All V2 polyamide UL94 960°C to IEC EN 60695-2-11 Compatible with either rigid (0.25mm² to 95mm²) or flexible (0.25mm² to 70mm²) copper cables Facility for 2 bridging combs Compatible with rails depth 15mm and rails EN 60715 depth 7.5mm and 15mm Range comprises only 2 block heights (2.5mm² to 10mm² and 16mm² to 70mm²) ensuring a neat installation Disconnection 1 connection Disconnection by means of blade type lever, handle lever or mini lever (with tool)
Connectable conductor cross section fine-strand without cable end sleeve0.25-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.25-2.5 mm²
Connectable conductor cross section solid-core0.25-2.5 mm²
Connectable conductor cross section multi-wired0.25-2.5 mm²
Rated current In15 A
Rated voltage500 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width6 mm
Height46.5 mm
Depth71.5 mm
Explosion-tested version 'Ex e'No
Closing plate requiredYes
ColourGrey
Internally connected stagesNo
Inflammability class of insulation material according to UL 94V2
