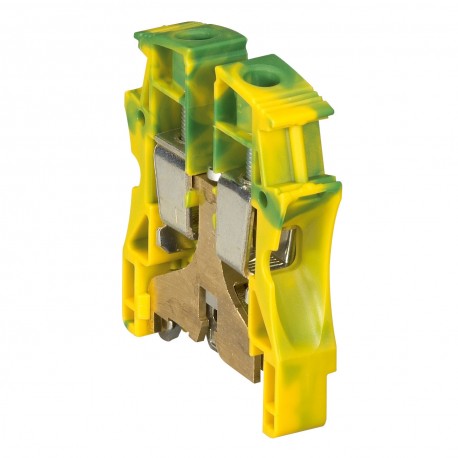

LEGRAND 037174 037174 LEGRAND BORNA VIKING3 EARTH 16MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037174 LEGRAND BORNA VIKING3 EARTH 16MM2

037174

037174

LEGRAND

10 Pcs.

BORNA VIKING3 EARTH 16MM2 Viking 3 Protection Terminal Block 16mm² Screw Connection 1 Entry 1 Exit Metal Base 12mm Green/Yellow Viking 3 terminal block with screw - 16² - 12 pitch

Automation > Feed-through terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for grounding applications, this 037174 LEGRAND BORNA VIKING3 EARTH 16MM2 earth terminal block provides a secure mechanical and electrical connection to DIN rails for protective conductor networks. Ground terminal blocks are essential safety components in control panels, safely channeling fault currents to ground to protect equipment and operators.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of clamp positions per level (EF002660): 2
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Internally connected stages (EF002661): No
  • Height (EF000040): 63 mm
  • Material insulation body (EF007543): Thermoplastic
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Explosion-tested version 'Ex e' (EF008498): Yes
  • Connectable conductor cross section multi-wired (EF007343): 4 mm²
  • Operating temperature (EF002393): -5 °C
  • Rated current In (EF008250): 76 A
  • Closing plate required (EF002525): Yes
  • Depth (EF000049): 54.5 mm
  • Type of electrical connection 1 (EF002526): Screw connection
  • Colour (EF000007): Green/yellow
  • Rated voltage (EF000228): 800 V
  • Width (EF000008): 12 mm

More info

▲
All V2 polyamide UL94 960°C to IEC EN 60695-2-11 Compatible with either rigid (0.25mm² to 95mm²) or flexible (0.25mm² to 70mm²) copper cables Facility for 2 bridging combs Compatible with rails depth 15mm and rails EN 60715 depth 7.5mm and 15mm Range comprises only 2 block heights (2.5mm² to 10mm² and 16mm² to 70mm²) ensuring a neat installation Protection 1 connection - 1 entry/1 exit - metal base Screwless fixing on rail up to 10mm width PEN from 10mm²
Connectable conductor cross section fine-strand without cable end sleeve1.5-25 mm²
Connectable conductor cross section fine-strand with cable end sleeve4-16 mm²
Connectable conductor cross section solid-core1.5-25 mm²
Connectable conductor cross section multi-wired4-16 mm²
Rated current In76 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width12 mm
Height63 mm
Depth54.5 mm
Explosion-tested version 'Ex e'Yes
Closing plate requiredYes
ColourGreen/yellow
Internally connected stagesNo
Inflammability class of insulation material according to UL 94V2
