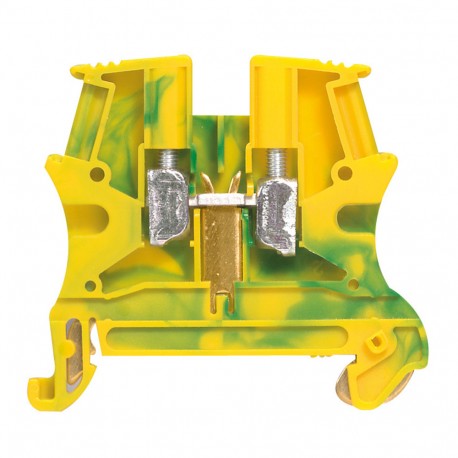

LEGRAND 037171 037171 LEGRAND TERMINAL BLOCK EARTH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037171 LEGRAND TERMINAL BLOCK EARTH

037171

037171

LEGRAND

50 Pcs.

TERMINAL BLOCK EARTH Viking 3 Protection Terminal Block 4mm² Screw Connection 1 Entry 1 Exit Metal Base 6mm Green/Yellow Viking 3 TT metal foot terminal - 4² - 6 step

Automation > Feed-through terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A terminal block earth, identified as part number 037171 by Legrand, provides a secure mechanical and electrical connection between protective earth conductors and DIN rail mounting systems. These blocks are standard in control cabinets to ensure proper grounding and safety compliance for electrical equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of clamp positions per level (EF002660): 2
  • Connectable conductor cross section solid-core (EF007337): 0.25 mm²
  • Internally connected stages (EF002661): No
  • Height (EF000040): 46.5 mm
  • Material insulation body (EF007543): Thermoplastic
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Explosion-tested version 'Ex e' (EF008498): Yes
  • Connectable conductor cross section multi-wired (EF007343): 0.25 mm²
  • Operating temperature (EF002393): -5 °C
  • Closing plate required (EF002525): Yes
  • Depth (EF000049): 52.5 mm
  • Type of electrical connection 1 (EF002526): Screw connection
  • Colour (EF000007): Green/yellow
  • Rated voltage (EF000228): 800 V
  • Width (EF000008): 6 mm
  • Number of levels (EF002659): 1

More info

▲
All V2 polyamide UL94 960°C to IEC EN 60695-2-11 Compatible with either rigid (0.25mm² to 95mm²) or flexible (0.25mm² to 70mm²) copper cables Facility for 2 bridging combs Compatible with rails depth 15mm and rails EN 60715 depth 7.5mm and 15mm Range comprises only 2 block heights (2.5mm² to 10mm² and 16mm² to 70mm²) ensuring a neat installation Protection 1 connection - 1 entry/1 exit - metal base Screwless fixing on rail up to 10mm width PEN from 10mm²
Connectable conductor cross section fine-strand without cable end sleeve0.25-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.25-4 mm²
Connectable conductor cross section solid-core0.25-6 mm²
Connectable conductor cross section multi-wired0.25-4 mm²
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width6 mm
Height46.5 mm
Depth52.5 mm
Explosion-tested version 'Ex e'Yes
Closing plate requiredYes
ColourGreen/yellow
Internally connected stagesNo
Inflammability class of insulation material according to UL 94V2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
