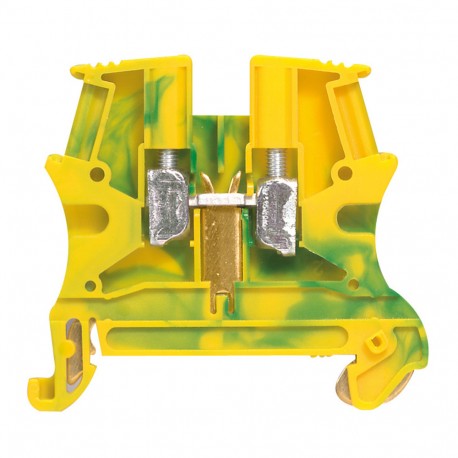

037170 LEGRAND BOR.VIKING3 EARTH 2,5MM2
037170
037170
LEGRAND
60 Pcs.
BOR.VIKING3 EARTH 2,5MM2
Viking 3 Protection Terminal Block 2.5mm² Screw Connection 1 Entry 1 Exit Metal Base 5mm Green/Yellow
Viking 3 TT metal foot terminal - 2.5² - 5 step
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Earth 2,5mm2 is a protective conductor terminal block used within industrial control cabinets to securely bond protective earth wires to standard mounting rails, ensuring safety and grounding continuity throughout electrical installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of clamp positions per level (EF002660): 2
- Connectable conductor cross section solid-core (EF007337): 0.25 mm²
- Internally connected stages (EF002661): No
- Height (EF000040): 46.5 mm
- Material insulation body (EF007543): Thermoplastic
- Mounting method (EF000003): DIN rail (top hat rail) 35 mm
- Explosion-tested version 'Ex e' (EF008498): Yes
- Connectable conductor cross section multi-wired (EF007343): 0.25 mm²
- Operating temperature (EF002393): -5 °C
- Closing plate required (EF002525): Yes
- Depth (EF000049): 52.5 mm
- Type of electrical connection 1 (EF002526): Screw connection
- Colour (EF000007): Green/yellow
- Rated voltage (EF000228): 800 V
- Width (EF000008): 5 mm
- Number of levels (EF002659): 1
More info
▲
All V2 polyamide UL94 960°C to IEC EN 60695-2-11 Compatible with either rigid (0.25mm² to 95mm²) or flexible (0.25mm² to 70mm²) copper cables Facility for 2 bridging combs Compatible with rails depth 15mm and rails EN 60715 depth 7.5mm and 15mm Range comprises only 2 block heights (2.5mm² to 10mm² and 16mm² to 70mm²) ensuring a neat installation Protection 1 connection - 1 entry/1 exit - metal base Screwless fixing on rail up to 10mm width PEN from 10mm²
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-4 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-2.5 mm² |
| Connectable conductor cross section solid-core | 0.25-4 mm² |
| Connectable conductor cross section multi-wired | 0.25-2.5 mm² |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 5 mm |
| Height | 46.5 mm |
| Depth | 52.5 mm |
| Explosion-tested version 'Ex e' | Yes |
| Closing plate required | Yes |
| Colour | Green/yellow |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
