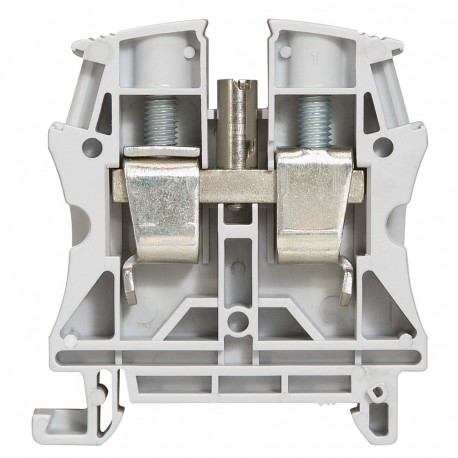

037164 LEGRAND BORNA VIKING3 16MM2
037164
037164
LEGRAND
20 Pcs.
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 037164 Viking 3 terminal block provides a dependable screw-connection interface for high-capacity conductors in demanding industrial power distribution networks. Heavy-duty terminal blocks ensure secure clamping forces to prevent loosening under mechanical vibration and thermal stress.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of clamp positions per level (EF002660): 2
- Connectable conductor cross section solid-core (EF007337): 1.5 mm²
- Internally connected stages (EF002661): No
- Height (EF000040): 63 mm
- Material insulation body (EF007543): Thermoplastic
- Mounting method (EF000003): DIN rail (top hat rail) 35 mm
- Explosion-tested version 'Ex e' (EF008498): Yes
- Connectable conductor cross section multi-wired (EF007343): 4 mm²
- Operating temperature (EF002393): -5 °C
- Rated current In (EF008250): 76 A
- Closing plate required (EF002525): Yes
- Depth (EF000049): 57 mm
- Type of electrical connection 1 (EF002526): Screw connection
- Colour (EF000007): Grey
- Rated voltage (EF000228): 800 V
- Width (EF000008): 12 mm
More info
▲| Connectable conductor cross section fine-strand without cable end sleeve | 1.5-25 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 4-16 mm² |
| Connectable conductor cross section solid-core | 1.5-25 mm² |
| Connectable conductor cross section multi-wired | 4-16 mm² |
| Rated current In | 76 A |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 12 mm |
| Height | 63 mm |
| Depth | 57 mm |
| Explosion-tested version 'Ex e' | Yes |
| Closing plate required | Yes |
| Colour | Grey |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
