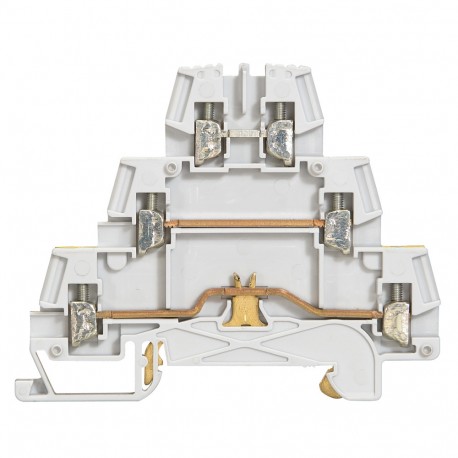

037152 LEGRAND BORNA VIKING3 ACC. 3P STEP 5
037152
037152
LEGRAND
50 Pcs.
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 037152 Viking3 accessory component provides secure modular connection points on standard DIN rails within industrial switchboards and control gear assemblies. Such components facilitate organized circuit termination, safe current distribution, and reliable mechanical mounting for demanding electrical distribution environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of clamp positions per level (EF002660): 2
- Connectable conductor cross section solid-core (EF007337): 0.25 mm²
- Internally connected stages (EF002661): No
- Height (EF000040): 67.5 mm
- Material insulation body (EF007543): Thermoplastic
- Mounting method (EF000003): DIN rail (top hat rail) 35 mm
- Explosion-tested version 'Ex e' (EF008498): Yes
- Connectable conductor cross section multi-wired (EF007343): 0.25 mm²
- Operating temperature (EF002393): -5 °C
- Rated current In (EF008250): 24 A
- Closing plate required (EF002525): Yes
- Depth (EF000049): 84.5 mm
- Type of electrical connection 1 (EF002526): Screw connection
- Colour (EF000007): Multi colour
- Rated voltage (EF000228): 400 V
- Width (EF000008): 5 mm
More info
▲| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-4 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-2.5 mm² |
| Connectable conductor cross section solid-core | 0.25-4 mm² |
| Connectable conductor cross section multi-wired | 0.25-2.5 mm² |
| Rated current In | 24 A |
| Rated voltage | 400 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 3 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 5 mm |
| Height | 67.5 mm |
| Depth | 84.5 mm |
| Explosion-tested version 'Ex e' | Yes |
| Closing plate required | Yes |
| Colour | Multi-coloured |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
