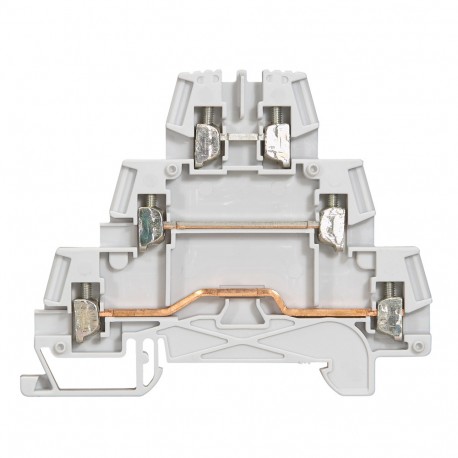

LEGRAND 037151 037151 LEGRAND BORNA VIKING3 ALIM. 3P STEP 5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037151 LEGRAND BORNA VIKING3 ALIM. 3P STEP 5

037151

037151

LEGRAND

50 Pcs.

BORNA VIKING3 ALIM. 3P STEP 5 Viking 3 Connection Terminal Block 2.5mm² Screw Connection 3 Level 5mm Grey Viking 3 terminal block with screw - 2.5² - 5 step

Automation > Feed-through terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Organize control panel wiring securely with the Legrand 037151 Viking3 feed-through terminal, an essential component for modular industrial electrical layouts. DIN-rail mounted blocks establish safe, reliable electrical contact between incoming and outgoing conductors while providing clear circuit separation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of clamp positions per level (EF002660): 2
  • Connectable conductor cross section solid-core (EF007337): 0.25 mm²
  • Internally connected stages (EF002661): No
  • Height (EF000040): 67.5 mm
  • Material insulation body (EF007543): Thermoplastic
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Explosion-tested version 'Ex e' (EF008498): Yes
  • Connectable conductor cross section multi-wired (EF007343): 0.25 mm²
  • Operating temperature (EF002393): -5 °C
  • Rated current In (EF008250): 24 A
  • Closing plate required (EF002525): Yes
  • Depth (EF000049): 84.5 mm
  • Type of electrical connection 1 (EF002526): Screw connection
  • Colour (EF000007): Grey
  • Rated voltage (EF000228): 400 V
  • Width (EF000008): 5 mm

More info

▲
All V2 polyamide UL94 960°C to IEC EN 60695-2-11 Compatible with either rigid (0.25mm² to 95mm²) or flexible (0.25mm² to 70mm²) copper cables Facility for 2 bridging combs Compatible with rails depth 15mm and rails EN 60715 depth 7.5mm and 15mm Range comprises only 2 block heights (2.5mm² to 10mm² and 16mm² to 70mm²) ensuring a neat installation Blocks for sensors and actuators For connecting sensors (Cat. No. 0371 51) or actuators (Cat. No. 0371 52), and their shared power supply unit when using equipotential bridging comb
Connectable conductor cross section fine-strand without cable end sleeve0.25-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.25-2.5 mm²
Connectable conductor cross section solid-core0.25-4 mm²
Connectable conductor cross section multi-wired0.25-2.5 mm²
Rated current In24 A
Rated voltage400 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels3
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width5 mm
Height67.5 mm
Depth84.5 mm
Explosion-tested version 'Ex e'Yes
Closing plate requiredYes
ColourGrey
Internally connected stagesNo
Inflammability class of insulation material according to UL 94V2
