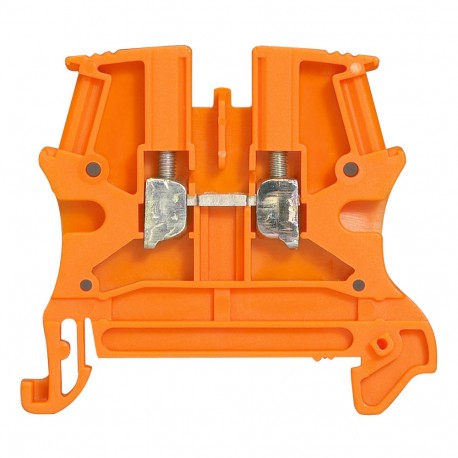

LEGRAND 037121 037121 LEGRAND BORNA VIKING3 NAR. SECT.4MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037121 LEGRAND BORNA VIKING3 NAR. SECT.4MM2

037121

037121

LEGRAND

50 Pcs.

BORNA VIKING3 NAR. SECT.4MM2 Viking 3 Connection Terminal Block 4mm² Screw Connection 1 Entry 1 Exit 6mm Orange Viking 3 terminal block with screw - 4² - 6 step

Automation > Feed-through terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This 037121 LEGRAND BORNA VIKING3 NAR. SECT.4MM2 terminal block offers a dependable screw-type connection method for routing and terminating conductors in control panels. Viking3 modular blocks accommodate standard rail mounting to streamline industrial electrical installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of clamp positions per level (EF002660): 2
  • Connectable conductor cross section solid-core (EF007337): 0.25 mm²
  • Internally connected stages (EF002661): No
  • Height (EF000040): 46.5 mm
  • Material insulation body (EF007543): Thermoplastic
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Explosion-tested version 'Ex e' (EF008498): Yes
  • Connectable conductor cross section multi-wired (EF007343): 0.25 mm²
  • Operating temperature (EF002393): -5 °C
  • Rated current In (EF008250): 32 A
  • Closing plate required (EF002525): Yes
  • Depth (EF000049): 52.5 mm
  • Type of electrical connection 1 (EF002526): Screw connection
  • Colour (EF000007): Orange
  • Rated voltage (EF000228): 800 V
  • Width (EF000008): 6 mm

More info

▲
All V2 polyamide UL94 960°C to IEC EN 60695-2-11 Compatible with either rigid (0.25mm² to 95mm²) or flexible (0.25mm² to 70mm²) copper cables Facility for 2 bridging combs Compatible with rails depth 15mm and rails EN 60715 depth 7.5mm and 15mm Range comprises only 2 block heights (2.5mm² to 10mm² and 16mm² to 70mm²) ensuring a neat installation Connection Grey for standard circuit Blue for neutral conductor Orange for circuit not broken by the master isolating device Red for special circuits (safety, protected, etc)
Connectable conductor cross section fine-strand without cable end sleeve0.25-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.25-4 mm²
Connectable conductor cross section solid-core0.25-6 mm²
Connectable conductor cross section multi-wired0.25-4 mm²
Rated current In32 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width6 mm
Height46.5 mm
Depth52.5 mm
Explosion-tested version 'Ex e'Yes
Closing plate requiredYes
ColourOrange
Internally connected stagesNo
Inflammability class of insulation material according to UL 94V2
