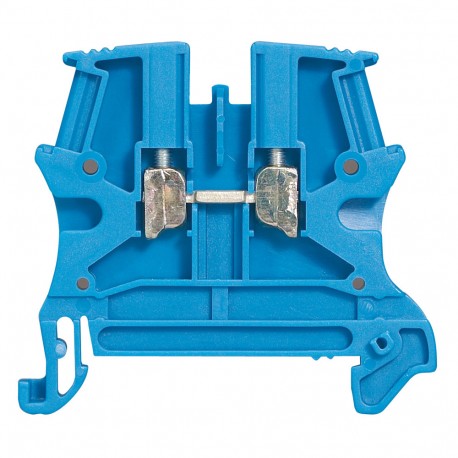

037105 LEGRAND BORNA VIKING3 NEUTRAL 35MM2
037105
037105
LEGRAND
20 Pcs.
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 037105 Viking3 neutral terminal block facilitates structured neutral conductor management in control panels and distribution enclosures. Neutral terminals ensure distinct separation and secure connection of zero-potential wires within complex automation systems.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of clamp positions per level (EF002660): 2
- Connectable conductor cross section solid-core (EF007337): 2.5 mm²
- Internally connected stages (EF002661): No
- Height (EF000040): 63 mm
- Material insulation body (EF007543): Thermoplastic
- Mounting method (EF000003): DIN rail (top hat rail) 35 mm
- Explosion-tested version 'Ex e' (EF008498): Yes
- Connectable conductor cross section multi-wired (EF007343): 4 mm²
- Operating temperature (EF002393): -5 °C
- Rated current In (EF008250): 125 A
- Closing plate required (EF002525): Yes
- Depth (EF000049): 57 mm
- Type of electrical connection 1 (EF002526): Screw connection
- Colour (EF000007): Blue
- Rated voltage (EF000228): 800 V
- Width (EF000008): 15 mm
More info
▲| Connectable conductor cross section fine-strand without cable end sleeve | 2.5-50 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 4-35 mm² |
| Connectable conductor cross section solid-core | 2.5-50 mm² |
| Connectable conductor cross section multi-wired | 4-35 mm² |
| Rated current In | 125 A |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 15 mm |
| Height | 63 mm |
| Depth | 57 mm |
| Explosion-tested version 'Ex e' | Yes |
| Closing plate required | Yes |
| Colour | Blue |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
