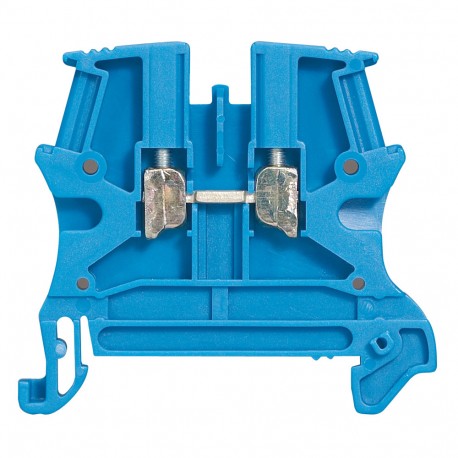

037104 LEGRAND BORNA VIKING3 NEUTRAL 16MM2
037104
037104
LEGRAND
20 Pcs.
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 037104 LEGRAND BORNA VIKING3 NEUTRAL 16MM2 is a neutral conductor terminal block used within electrical distribution boards to safely route and organize neutral lines. Component blocks of this type provide centralized connection points, supporting structured cable management and maintaining electrical safety compliance across industrial switchgear assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of clamp positions per level (EF002660): 2
- Connectable conductor cross section solid-core (EF007337): 1.5 mm²
- Internally connected stages (EF002661): No
- Height (EF000040): 63 mm
- Material insulation body (EF007543): Thermoplastic
- Mounting method (EF000003): DIN rail (top hat rail) 35 mm
- Explosion-tested version 'Ex e' (EF008498): Yes
- Connectable conductor cross section multi-wired (EF007343): 4 mm²
- Operating temperature (EF002393): -5 °C
- Rated current In (EF008250): 76 A
- Closing plate required (EF002525): Yes
- Depth (EF000049): 57 mm
- Type of electrical connection 1 (EF002526): Screw connection
- Colour (EF000007): Blue
- Rated voltage (EF000228): 800 V
- Width (EF000008): 12 mm
More info
▲| Connectable conductor cross section fine-strand without cable end sleeve | 1.5-25 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 4-16 mm² |
| Connectable conductor cross section solid-core | 1.5-25 mm² |
| Connectable conductor cross section multi-wired | 4-16 mm² |
| Rated current In | 76 A |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 12 mm |
| Height | 63 mm |
| Depth | 57 mm |
| Explosion-tested version 'Ex e' | Yes |
| Closing plate required | Yes |
| Colour | Blue |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
