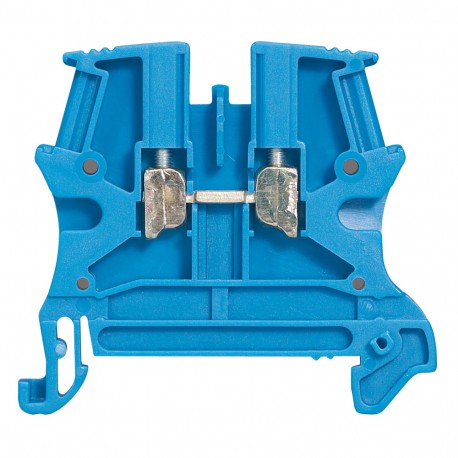

037103 LEGRAND BORNA VIKING3 NEUTRAL 10MM2
037103
037103
LEGRAND
30 Pcs.
BORNA VIKING3 NEUTRAL 10MM2
Viking 3 Connection Terminal Block 10mm² Screw Connection 1 Entry 1 Exit 10mm Blue
Viking 3 terminal block with screw - 10² - 10 pitch
Automation > Feed-through terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
All V2 polyamide UL94 960°C to IEC EN 60695-2-11 Compatible with either rigid (0.25mm² to 95mm²) or flexible (0.25mm² to 70mm²) copper cables Facility for 2 bridging combs Compatible with rails depth 15mm and rails EN 60715 depth 7.5mm and 15mm Range comprises only 2 block heights (2.5mm² to 10mm² and 16mm² to 70mm²) ensuring a neat installation Connection Grey for standard circuit Blue for neutral conductor Orange for circuit not broken by the master isolating device Red for special circuits (safety, protected, etc)
| Connectable conductor cross section fine-strand without cable end sleeve | 1.5-16 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 2.5-10 mm² |
| Connectable conductor cross section solid-core | 1.5-16 mm² |
| Connectable conductor cross section multi-wired | 2.5-10 mm² |
| Rated current In | 57 A |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 10 mm |
| Height | 46.5 mm |
| Depth | 52.5 mm |
| Explosion-tested version 'Ex e' | Yes |
| Closing plate required | Yes |
| Colour | Blue |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
| Feature Name | Feature Value |
|---|---|
| Number of clamp positions per level (EF002660) | 2 |
| Connectable conductor cross section solid-core (EF007337) | 1.5 mm² |
| Internally connected stages (EF002661) | No |
| Height (EF000040) | 46.5 mm |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 2.5 mm² |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 1.5 mm² |
| Explosion-tested version 'Ex e' (EF008498) | Yes |
| Connectable conductor cross section multi-wired (EF007343) | 2.5 mm² |
| Operating temperature (EF002393) | -5 °C |
| Rated current In (EF008250) | 57 A |
| Closing plate required (EF002525) | Yes |
| Depth (EF000049) | 52.5 mm |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Colour (EF000007) | Blue |
| Rated voltage (EF000228) | 800 V |
| Width (EF000008) | 10 mm |
| Number of levels (EF002659) | 1 |
| Type of electrical connection 2 (EF002527) | Screw connection |
