036977 LEGRAND ARM METAL ATLANTIC 400X600X250
036977
036977
LEGRAND
1 Pcs.
Automation > Empty cabinet
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

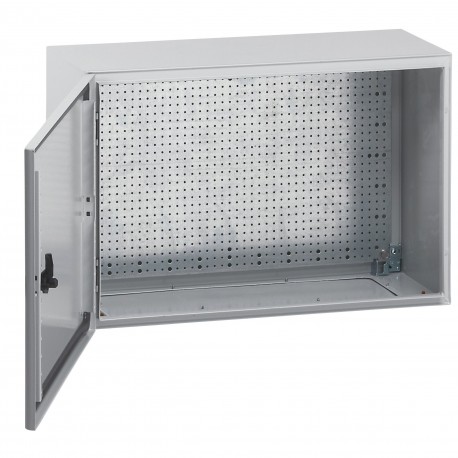

Metal enclosure model 036977 LEGRAND ARM METAL ATLANTIC 400X600X250 protects electrical distribution gear, control electronics, and automation systems from harsh factory conditions. Wall-mounted steel cabinets provide secure, sealed housing to maintain component integrity in indoor and outdoor installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 400 mm
- Type of door (EF004464): Single
- Degree of protection (IP) (EF005474): IP66
- Inner depth (EF001131): 230 mm
- Transparent cover/door (EF006244): No
- Housing material (EF001596): Steel
- With lock (EF006306): Yes
- Mounting method (EF000003): Surface mounted
- Suitable for outdoor use (EF003532): Yes
- Number of openings for flange plates (EF009554): 1
- Cover model (EF009212): Closed
- Material plate thickness cabinet (EF009170): 1 mm
- Material plate thickness door/cover (EF009171): 1.25 mm
- Surface protection (EF000139): Powder coated
- RAL-number (EF000116): 7035
- Built-in depth (EF000218): 205 mm
More info
▲| Mounting method | Surface mounted |
|---|---|
| Type of covering | Door |
| Cover model | Closed |
| Type of door | Single |
| Transparent cover/door | No |
| With lock | Yes |
| Height | 400 mm |
| Width | 600 mm |
| Depth | 200 mm |
| Built-in depth | 205 mm |
| Inner depth | 230 mm |
| Material plate thickness cabinet | 1 mm |
| Material plate thickness door/cover | 1.25 mm |
| Colour | Grey |
|---|---|
| RAL-number | 7035 |
| Number of openings for flange plates | 1 |
| Extension possible | No |
| Housing material | Steel |
| Surface protection | Powder coating |
| With mounting plate | Yes |
| Suitable for outdoor use | Yes |
| Suitable for lightning protection | No |
| Degree of protection (IP) | IP66 |
| Protection class according to IEC 61140 | I |
| degree of impact strength (IK) | IK10 |
| Circuit integrity | Other |
