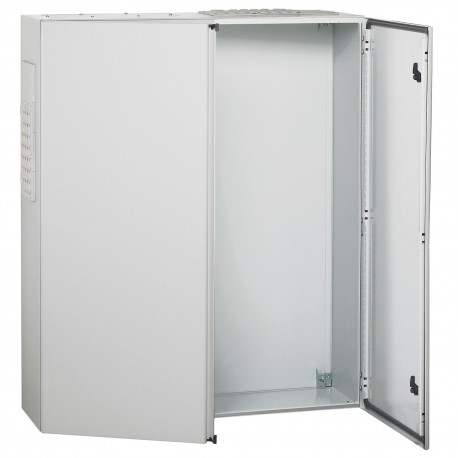

LEGRAND 036943 036943 LEGRAND ARM MET ATLANTIC 1200X800X300 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

036943 LEGRAND ARM MET ATLANTIC 1200X800X300

036943

036943

LEGRAND

1 Pcs.

ARM MET ATLANTIC 1200X800X300 Atlantic IP66 Metal Enclosure 1200mm x 800mm x 300mm Atlantic Cabinet - waterproof metal - IP66 - IK10 - 1200x800x300mm - RAL7035

Automation > Empty cabinet
ATLANTIC-MARINA CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Metal cabinet 036943 by Legrand is an Atlantic series steel wall-mounted enclosure engineered to safeguard industrial automation panels and heavy electrical switchgear.

Heavy-duty steel enclosures offer high structural integrity and IP-rated protection for complex electrical distribution systems in harsh manufacturing environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 1200 mm
  • Type of door (EF004464): Single
  • Degree of protection (IP) (EF005474): IP66
  • Inner depth (EF001131): 280 mm
  • Transparent cover/door (EF006244): No
  • Housing material (EF001596): Steel
  • With lock (EF006306): Yes
  • Mounting method (EF000003): Surface mounted
  • Suitable for outdoor use (EF003532): Yes
  • Number of openings for flange plates (EF009554): 1
  • Cover model (EF009212): Closed
  • Material plate thickness cabinet (EF009170): 1.25 mm
  • Material plate thickness door/cover (EF009171): 1.8 mm
  • Surface protection (EF000139): Powder coated
  • RAL-number (EF000116): 7035
  • Built-in depth (EF000218): 305 mm

More info

▲
IP 66 according to standards IEC EN 60529 for 1-door enclosures - IP 55 according to standards IEC EN 60529 for 2-door enclosures IK 10 according to standards IEC EN 62262 LCIE 17 07 90 10A Type 4x, 1 door, Type 12, 2 doors - cULus, Bureau Veritas EMC attenuation 20 dB (for an EMC attenuation from 40 to 50 dB at 1 GHz, please consult us) Excellent resistance to corrosion and chemical agents 80 µm thick textured polyester coating. Anti-corrosion treatment for hinges and pins Reversible door - Fitted with lever Double bar lock - Self-centering positioning system for the equipment Compatible with all Atlantic accessories Low cable entries RAL 7035 - Optional depth adjustment for enclosures 400 mm depth, with side rails Cat. No. 0367 45
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/doorNo
With lockYes
Height1200 mm
Width800 mm
Depth300 mm
Built-in depth305 mm
Inner depth280 mm
Material plate thickness cabinet1.25 mm
Material plate thickness door/cover1.8 mm
ColourGrey
RAL-number7035
Number of openings for flange plates1
Extension possibleNo
Housing materialSteel
Surface protectionPowder coating
With mounting plateYes
Suitable for outdoor useYes
Suitable for lightning protectionNo
Degree of protection (IP)IP66
Protection class according to IEC 61140I
degree of impact strength (IK)IK10
Circuit integrityOther
