View larger
Images are for illustrative purposes only. Please refer to data sheet for details

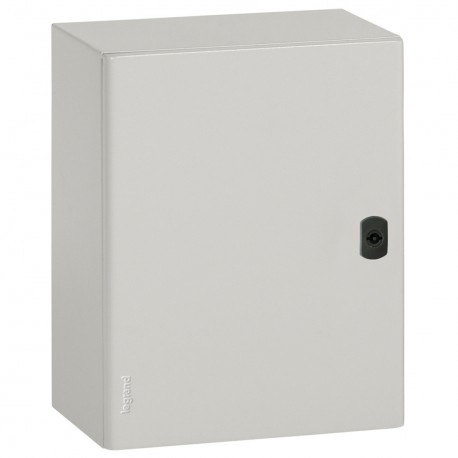

036931 LEGRAND ARM METAL ATLANTIC 800X600X250
036931
036931
LEGRAND
1 Pcs.
ARM METAL ATLANTIC 800X600X250
Atlantic IP66 Metal Enclosure 800mm x 600mm x 250mm
Atlantic Cabinet - waterproof metal - IP66 - IK10 - 800x600x250mm - RAL7035
Automation > Empty cabinet
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
IP 66 according to standards IEC EN 60529 for 1-door enclosures - IP 55 according to standards IEC EN 60529 for 2-door enclosures IK 10 according to standards IEC EN 62262 LCIE 17 07 90 10A Type 4x, 1 door, Type 12, 2 doors - cULus, Bureau Veritas EMC attenuation 20 dB (for an EMC attenuation from 40 to 50 dB at 1 GHz, please consult us) Excellent resistance to corrosion and chemical agents 80 µm thick textured polyester coating. Anti-corrosion treatment for hinges and pins Reversible door - Fitted with lever Double bar lock - Self-centering positioning system for the equipment Compatible with all Atlantic accessories Low cable entries RAL 7035 - Optional depth adjustment for enclosures 400 mm depth, with side rails Cat. No. 0367 45
| Mounting method | Surface mounted |
|---|---|
| Type of covering | Door |
| Cover model | Closed |
| Type of door | Single |
| Transparent cover/door | No |
| With lock | Yes |
| Height | 800 mm |
| Width | 600 mm |
| Depth | 250 mm |
| Built-in depth | 255 mm |
| Inner depth | 230 mm |
| Material plate thickness cabinet | 1 mm |
| Material plate thickness door/cover | 1.8 mm |
| Colour | Grey |
|---|---|
| RAL-number | 7035 |
| Number of openings for flange plates | 1 |
| Extension possible | No |
| Housing material | Steel |
| Surface protection | Powder coating |
| With mounting plate | Yes |
| Suitable for outdoor use | Yes |
| Suitable for lightning protection | No |
| Degree of protection (IP) | IP66 |
| Protection class according to IEC 61140 | I |
| degree of impact strength (IK) | IK10 |
| Circuit integrity | Other |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 800 mm |
| Type of door (EF004464) | Single |
| Degree of protection (IP) (EF005474) | IP66 |
| Inner depth (EF001131) | 230 mm |
| Transparent cover/door (EF006244) | No |
| Housing material (EF001596) | Steel |
| With lock (EF006306) | Yes |
| Mounting method (EF000003) | Surface mounted |
| Suitable for outdoor use (EF003532) | Yes |
| Number of openings for flange plates (EF009554) | 1 |
| Cover model (EF009212) | Closed |
| Material plate thickness cabinet (EF009170) | 1 mm |
| Material plate thickness door/cover (EF009171) | 1.8 mm |
| Surface protection (EF000139) | Powder coated |
| RAL-number (EF000116) | 7035 |
| Built-in depth (EF000218) | 255 mm |
| Type of covering (EF000339) | Door |
| With mounting plate (EF000118) | Yes |
| Suitable for lightning protection (EF007800) | No |
| Extension possible (EF001088) | No |
| Impact strength (EF004293) | IK10 |
| Depth (EF000049) | 250 mm |
| Protection class according to IEC 61140 (EF000004) | I |
| Circuit integrity (EF001613) | Other |
| Colour (EF000007) | Grey |
| Width (EF000008) | 600 mm |
