036926 LEGRAND ARM METAL ATLANTIC 600X400X250
036926
036926
LEGRAND
1 Pcs.
Automation > Empty cabinet
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

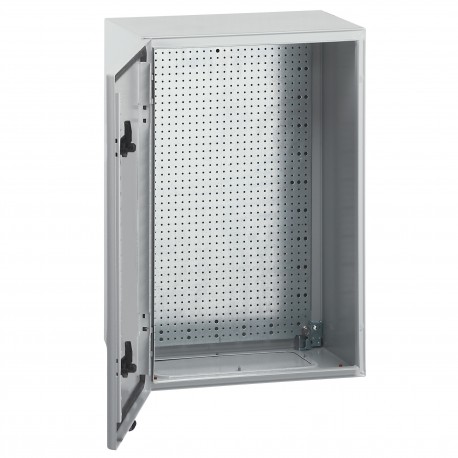

036926 LEGRAND ARM METAL ATLANTIC 600X400X250 is a durable metal wall-mounting enclosure engineered to house electrical control components, automation gear, and distribution hardware securely. Metal enclosures offer heavy-duty physical protection and high ingress resistance for demanding industrial applications.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 600 mm
- Type of door (EF004464): Single
- Degree of protection (IP) (EF005474): IP66
- Inner depth (EF001131): 230 mm
- Transparent cover/door (EF006244): No
- Housing material (EF001596): Steel
- With lock (EF006306): Yes
- Mounting method (EF000003): Surface mounted
- Suitable for outdoor use (EF003532): Yes
- Number of openings for flange plates (EF009554): 1
- Cover model (EF009212): Closed
- Material plate thickness cabinet (EF009170): 1 mm
- Material plate thickness door/cover (EF009171): 1.25 mm
- Surface protection (EF000139): Powder coated
- RAL-number (EF000116): 7035
- Built-in depth (EF000218): 255 mm
More info
▲| Mounting method | Surface mounted |
|---|---|
| Type of covering | Door |
| Cover model | Closed |
| Type of door | Single |
| Transparent cover/door | No |
| With lock | Yes |
| Height | 600 mm |
| Width | 400 mm |
| Depth | 250 mm |
| Built-in depth | 255 mm |
| Inner depth | 230 mm |
| Material plate thickness cabinet | 1 mm |
| Material plate thickness door/cover | 1.25 mm |
| Colour | Grey |
|---|---|
| RAL-number | 7035 |
| Number of openings for flange plates | 1 |
| Extension possible | No |
| Housing material | Steel |
| Surface protection | Powder coating |
| With mounting plate | Yes |
| Suitable for outdoor use | Yes |
| Suitable for lightning protection | No |
| Degree of protection (IP) | IP66 |
| Protection class according to IEC 61140 | I |
| degree of impact strength (IK) | IK10 |
| Circuit integrity | Other |
