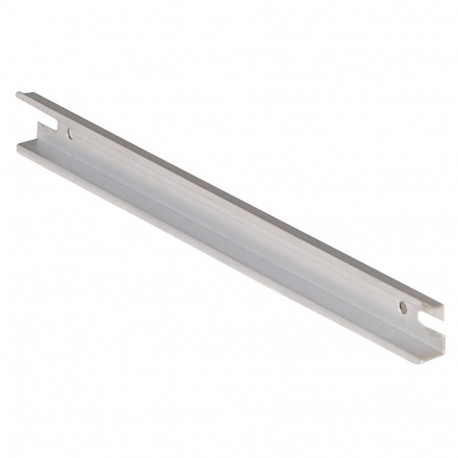

LEGRAND 036781 036781 LEGRAND RAIL LINA 25 L 343 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

036781 LEGRAND RAIL LINA 25 L 343

036781

036781

LEGRAND

10 Pcs.

RAIL LINA 25 L=343 Lina 25 Enclosure Crosspiece 343mm Lina 25 symmetrical rail for Atlantic/Marina L400 - L. 343mm

Automation > Mounting rail
ATLANTIC-MARINA CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

RAIL LINA 25 L 343 from Legrand, bearing part number 036781, functions as a structural DIN rail for securing modular control and protection devices in electrical panels. Slotted rails facilitate fast alignment and bolting inside industrial distribution boards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 15 mm
  • Model (EF000010): DIN rail (top hat rail) 35/15 mm
  • Material thickness (EF000386): 1.5 mm
  • Material (EF002169): Steel
  • Punch shape (EF001457): Long-slot
  • Drill hole distance centrically (EF002677): 323 mm
  • Surface protection (EF000139): Chromated
  • Length (EF001438): 343 mm

More info

▲
For fixing onto uprights with clip nut Cat. No. 0364 42 and screw-washer Cat. No. 0367 75
ModelDIN rail (top hat rail) 35/15 mm
MaterialSteel
Surface protectionChromated
Punch shapeLong-slot
Drill hole distance centrically323 mm
Material thickness1.5 mm
Length343 mm
Height15 mm
