View larger
Images are for illustrative purposes only. Please refer to data sheet for details

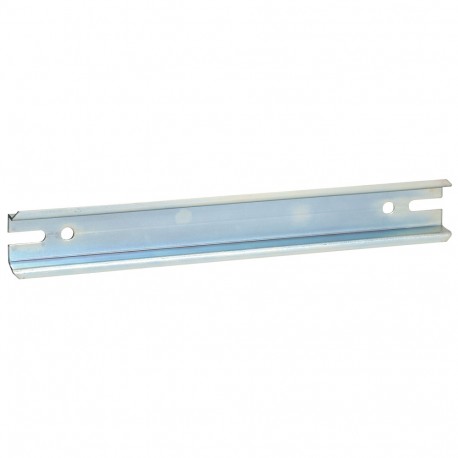

036780 LEGRAND RAIL LINA 25 L 243
036780
036780
LEGRAND
10 Pcs.
RAIL LINA 25 L=243
Lina 25 Enclosure Crosspiece 243mm
Lina 25 symmetrical rail for Atlantic/Marina L300 - L. 243mm
Automation > Mounting rail
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
For fixing onto uprights with clip nut Cat. No. 0364 42 and screw-washer Cat. No. 0367 75
| Model | DIN rail (top hat rail) 35/15 mm |
|---|---|
| Material | Steel |
| Surface protection | Chromated |
| Punch shape | Long-slot |
| Drill hole distance centrically | 223 mm |
| Material thickness | 1.5 mm |
|---|---|
| Length | 243 mm |
| Height | 15 mm |
| Depth | 35 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 15 mm |
| Model (EF000010) | DIN rail (top hat rail) 35/15 mm |
| Material thickness (EF000386) | 1.5 mm |
| Material (EF002169) | Steel |
| Punch shape (EF001457) | Long-slot |
| Drill hole distance centrically (EF002677) | 223 mm |
| Surface protection (EF000139) | Chromated |
| Length (EF001438) | 243 mm |
