View larger
Images are for illustrative purposes only. Please refer to data sheet for details

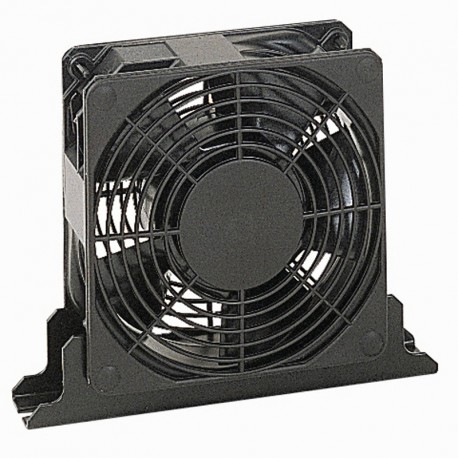

036574 LEGRAND ACC. ARM.-FAN 160 M3/H
036574
036574
LEGRAND
1 Pcs.
ACC. ARM.-FAN 160 M3/H
Air circulation kit - 160 mﾳ/h - for heat regulation
Internal connection set 160 m³/h
Automation > Ventilator (switchgear cabinet)
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)2.093
- Weight (g)731.00
Product characteristics
Air circulation kit 160 m³/h- 230 V~ - 50/60 Hz
- Uniformizes temperature in enclosure
- Prevent hot spots
- Plate or rail mounting in bottom part of enclosure or under most sensitive equipment
- The air flow must be directed upward
General characteristics
Heat regulation for cabinets and enclosures - ventilators| Feature Name | Feature Value |
|---|---|
| Operating voltage AC 50 Hz (EF008206) | 230 V |
| Suitable for wall built-in (EF007536) | No |
| Operating voltage AC 60 Hz (EF008207) | 230 V |
| Height (EF000040) | 51 mm |
| With filter (EF006013) | No |
| Air circulator (EF007516) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Voltage type (EF000187) | AC |
| Built as slide-in ventilator (EF007126) | No |
| Mounting method (EF000003) | Screw mounting |
| Roof ventilator (EF007099) | No |
| Rated power (EF007051) | 18 W |
| Volume flow, freeblowing (EF007173) | 160 m³/h |
| EMC-version (EF001062) | No |
| Number of fans (EF000928) | 1 |
| Depth (EF000049) | 135 mm |
| Suitable for 19 inch rack mounting (EF000337) | No |
| Colour (EF000007) | Black |
| Width (EF000008) | 164 mm |
