View larger
Images are for illustrative purposes only. Please refer to data sheet for details

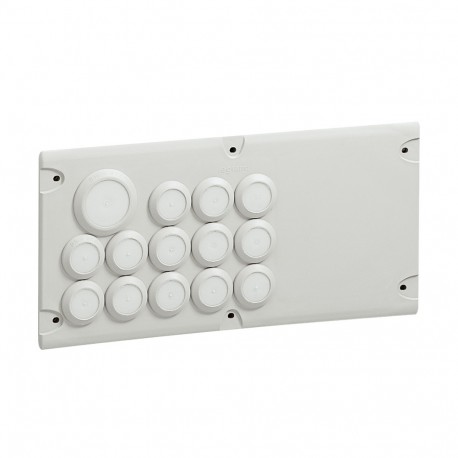

036495 LEGRAND PLATE CABSTOP IP55 D13
036495
036495
LEGRAND
1 Pcs.
PLATE CABSTOP IP55 D13
Legrand Cabstop IP55 Open-Work Plate 14 Entries and 1 Spare
IP55 Cabstop Plate - 13x from Ø5 to 14 - 1x Ø 14 to 25 - 1 reserve
Automation > Gland plate for small distribution boards/switchgear cabinets
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Cable entries consisting of a cable clamp providing the mechanical grip, and elastomer areas for weatherproofing Can be pierced using the cable (no tool required) Fits the cable perfectly Replacement of a cable possible Fire retardant polypropylene RAL 7035 2 possibilities of mounting: - direct on cable entry of Atlantic enclosures - on flat surface with kit Cat. No. 0364 98 Supplied with: - locking caps for sealing a pierced entry providing IP 55 protection - cable release tool
| Model | Cable screw gland |
|---|---|
| Width | 147 mm |
| Material | Plastic |
| Surface protection | Untreated |
|---|---|
| Pre-stamping | Yes |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Cable screw gland |
| Material (EF002169) | Plastic |
| Pre-stamping (EF001039) | Yes |
| Surface protection (EF000139) | Untreated |
| Width (EF000008) | 147 mm |
