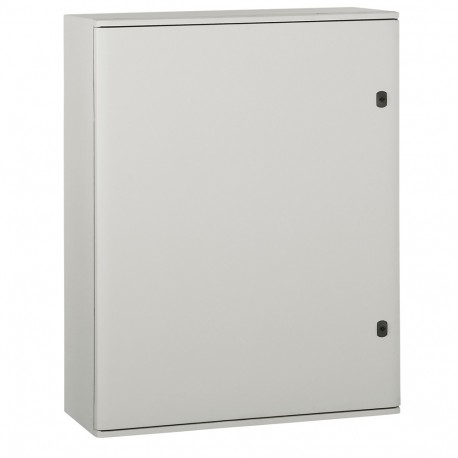

LEGRAND 036264 036264 LEGRAND CLOSET NAVY 1200X800X300 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

036264 LEGRAND CLOSET NAVY 1200X800X300

036264

036264

LEGRAND

1 Pcs.

CLOSET NAVY 1200X800X300 Marina IP66 GRP Wall Mounting Enclosure 1220mm x 810mm x 300mm Polyester Box Marina - IP66- IK10 - RAL 7035 - 1220x810x300mm

Automation > Empty cabinet
ATLANTIC-MARINA CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand Navy closet enclosure such as the 036264 model provides rugged environmental protection for large electrical distribution panels and control systems. Heavy-duty plastic enclosures safeguard internal equipment from harsh atmospheric conditions and physical damage.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 1200 mm
  • Type of door (EF004464): Single
  • Degree of protection (IP) (EF005474): IP66
  • Inner depth (EF001131): 261 mm
  • Transparent cover/door (EF006244): No
  • Housing material (EF001596): Plastic
  • With lock (EF006306): Yes
  • Mounting method (EF000003): Surface mounted
  • Suitable for outdoor use (EF003532): Yes
  • Number of openings for flange plates (EF009554): 0
  • Cover model (EF009212): Closed
  • Material plate thickness cabinet (EF009170): 3.5 mm
  • Material plate thickness door/cover (EF009171): 4 mm
  • Surface protection (EF000139): Untreated
  • RAL-number (EF000116): 7035
  • Built-in depth (EF000218): 305 mm

More info

▲
Grey RAL 7035 IP 66 according to IEC EN 60529 IK 10 according to IEC EN 62262 (EN 50102) Class II insulation for final assembly according to IEC EN 60439-1 Glass fibre reinforced polyester (GRP) enclosures Self extinguishing at 960°C according to IEC EN 60695-2-11 Designed for corrosive environments Reversible door, 180o opening 2 x double bar locks Captive stainless steel hinge pins Mounting plate/equipment can be fixed directly to the rear of the enclosure Accepts partial plate from 500 x 400 x 200mm and/or rails Optional depth adjustment kit (Cat. No. 0362 42) available for enclosures 400mm high and above For wall mounting, wall mounting brackets must be ordered separately
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/doorNo
With lockYes
Height1200 mm
Width800 mm
Depth300 mm
Built-in depth305 mm
Inner depth261 mm
Material plate thickness cabinet3.5 mm
Material plate thickness door/cover4 mm
ColourGrey
RAL-number7035
Number of openings for flange plates0
Extension possibleNo
Housing materialPlastic
Surface protectionUntreated
With mounting plateNo
Suitable for outdoor useYes
Suitable for lightning protectionYes
Degree of protection (IP)IP66
Protection class according to IEC 61140II
degree of impact strength (IK)IK10
Circuit integrityNone
