036256 LEGRAND CLOSET NAVY 700X500X250
036256
036256
LEGRAND
1 Pcs.
Automation > Empty cabinet
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

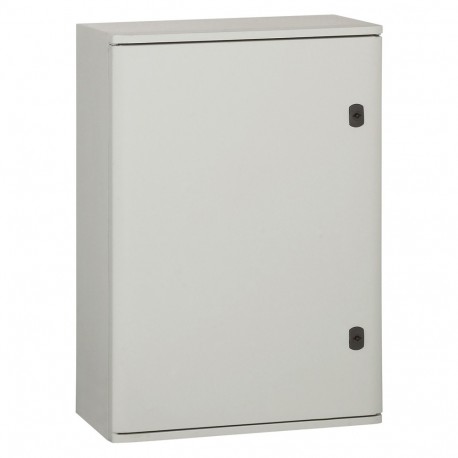

The 036256 LEGRAND CLOSET NAVY 700X500X250 is a heavy-duty plastic wall-mounted cabinet designed to protect electrical and automation controls in demanding outdoor or corrosive environments. Weatherproof enclosures safeguard internal terminal blocks and switching devices against severe moisture and dust exposure.
Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 700 mm
- Type of door (EF004464): Single
- Degree of protection (IP) (EF005474): IP66
- Inner depth (EF001131): 211 mm
- Transparent cover/door (EF006244): No
- Housing material (EF001596): Plastic
- With lock (EF006306): Yes
- Mounting method (EF000003): Surface mounted
- Suitable for outdoor use (EF003532): Yes
- Number of openings for flange plates (EF009554): 0
- Cover model (EF009212): Closed
- Material plate thickness cabinet (EF009170): 3.5 mm
- Material plate thickness door/cover (EF009171): 4 mm
- Surface protection (EF000139): Untreated
- RAL-number (EF000116): 7035
- Built-in depth (EF000218): 255 mm
More info
▲| Mounting method | Surface mounted |
|---|---|
| Type of covering | Door |
| Cover model | Closed |
| Type of door | Single |
| Transparent cover/door | No |
| With lock | Yes |
| Height | 700 mm |
| Width | 500 mm |
| Depth | 250 mm |
| Built-in depth | 255 mm |
| Inner depth | 211 mm |
| Material plate thickness cabinet | 3.5 mm |
| Material plate thickness door/cover | 4 mm |
| Colour | Grey |
|---|---|
| RAL-number | 7035 |
| Number of openings for flange plates | 0 |
| Extension possible | No |
| Housing material | Plastic |
| Surface protection | Untreated |
| With mounting plate | No |
| Suitable for outdoor use | Yes |
| Suitable for lightning protection | Yes |
| Degree of protection (IP) | IP66 |
| Protection class according to IEC 61140 | II |
| degree of impact strength (IK) | IK10 |
| Circuit integrity | None |
