View larger
Images are for illustrative purposes only. Please refer to data sheet for details

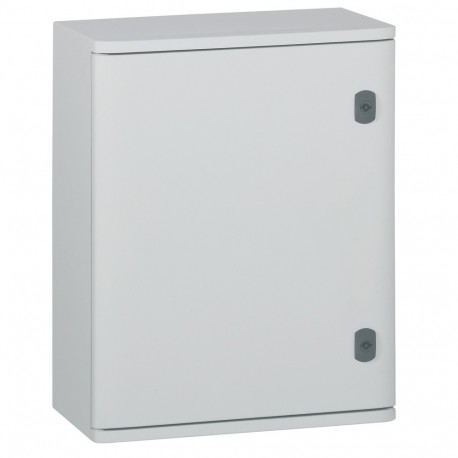

036252 LEGRAND CLOSET NAVY 500X400X200
036252
036252
LEGRAND
1 Pcs.
CLOSET NAVY 500X400X200
Marina IP66 GRP Wall Mounting Enclosure 500mm x 400mm x 206mm
Polyester Box Marina - IP66- IK10 - RAL 7035 - 500x400x206mm
Automation > Empty cabinet
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Grey RAL 7035 IP 66 according to IEC EN 60529 IK 10 according to IEC EN 62262 (EN 50102) Class II insulation for final assembly according to IEC EN 60439-1 Glass fibre reinforced polyester (GRP) enclosures Self extinguishing at 960°C according to IEC EN 60695-2-11 Designed for corrosive environments Reversible door, 180o opening 2 x double bar locks Captive stainless steel hinge pins Mounting plate/equipment can be fixed directly to the rear of the enclosure Accepts partial plate from 500 x 400 x 200mm and/or rails Optional depth adjustment kit (Cat. No. 0362 42) available for enclosures 400mm high and above For wall mounting, wall mounting brackets must be ordered separately
| Mounting method | Surface mounted |
|---|---|
| Type of covering | Door |
| Cover model | Closed |
| Type of door | Single |
| Transparent cover/door | No |
| With lock | Yes |
| Height | 500 mm |
| Width | 400 mm |
| Depth | 200 mm |
| Built-in depth | 205 mm |
| Inner depth | 178 mm |
| Material plate thickness cabinet | 2.5 mm |
| Material plate thickness door/cover | 2.8 mm |
| Colour | Grey |
|---|---|
| RAL-number | 7035 |
| Number of openings for flange plates | 0 |
| Extension possible | No |
| Housing material | Plastic |
| Surface protection | Untreated |
| With mounting plate | No |
| Suitable for outdoor use | Yes |
| Suitable for lightning protection | Yes |
| Degree of protection (IP) | IP66 |
| Protection class according to IEC 61140 | II |
| degree of impact strength (IK) | IK10 |
| Circuit integrity | None |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 500 mm |
| Type of door (EF004464) | Single |
| Degree of protection (IP) (EF005474) | IP66 |
| Inner depth (EF001131) | 178 mm |
| Transparent cover/door (EF006244) | No |
| Housing material (EF001596) | Plastic |
| With lock (EF006306) | Yes |
| Mounting method (EF000003) | Surface mounted |
| Suitable for outdoor use (EF003532) | Yes |
| Number of openings for flange plates (EF009554) | 0 |
| Cover model (EF009212) | Closed |
| Material plate thickness cabinet (EF009170) | 2.5 mm |
| Material plate thickness door/cover (EF009171) | 2.8 mm |
| Surface protection (EF000139) | Untreated |
| RAL-number (EF000116) | 7035 |
| Built-in depth (EF000218) | 205 mm |
| Type of covering (EF000339) | Door |
| With mounting plate (EF000118) | No |
| Suitable for lightning protection (EF007800) | Yes |
| Extension possible (EF001088) | No |
| Impact strength (EF004293) | IK10 |
| Depth (EF000049) | 200 mm |
| Protection class according to IEC 61140 (EF000004) | II |
| Circuit integrity (EF001613) | None |
| Colour (EF000007) | Grey |
| Width (EF000008) | 400 mm |
