View larger
Images are for illustrative purposes only. Please refer to data sheet for details

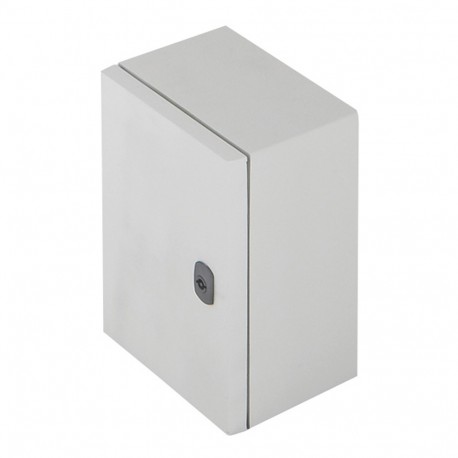

036250 LEGRAND CLOSET NAVY 300X200X160
036250
036250
LEGRAND
1 Pcs.
CLOSET NAVY 300X200X160
Marina IP66 GRP Wall Mounting Enclosure 300mm x 220mm x 160mm
Polyester Box Marina - IP66- IK10 - RAL 7035 - 300x220x160mm
Automation > Empty cabinet
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Grey RAL 7035 IP 66 according to IEC EN 60529 IK 10 according to IEC EN 62262 (EN 50102) Class II insulation for final assembly according to IEC EN 60439-1 Glass fibre reinforced polyester (GRP) enclosures Self extinguishing at 960°C according to IEC EN 60695-2-11 Designed for corrosive environments Mounting plate/equipment can be fixed directly to the rear of the enclosure Optional depth adjustment kit (Cat. No. 0362 42) available for enclosures 400mm high and above For wall mounting, wall mounting brackets must be ordered separately
| Mounting method | Surface mounted |
|---|---|
| Type of covering | Door |
| Cover model | Closed |
| Type of door | Single |
| Transparent cover/door | No |
| With lock | Yes |
| Height | 300 mm |
| Width | 200 mm |
| Depth | 160 mm |
| Built-in depth | 165 mm |
| Inner depth | 140 mm |
| Material plate thickness cabinet | 2.5 mm |
| Material plate thickness door/cover | 2.5 mm |
| Colour | Grey |
|---|---|
| RAL-number | 7035 |
| Number of openings for flange plates | 0 |
| Extension possible | No |
| Housing material | Plastic |
| Surface protection | Untreated |
| With mounting plate | No |
| Suitable for outdoor use | Yes |
| Suitable for lightning protection | Yes |
| Degree of protection (IP) | IP66 |
| Protection class according to IEC 61140 | II |
| degree of impact strength (IK) | IK09 |
| Circuit integrity | None |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 300 mm |
| Type of door (EF004464) | Single |
| Degree of protection (IP) (EF005474) | IP66 |
| Inner depth (EF001131) | 140 mm |
| Transparent cover/door (EF006244) | No |
| Housing material (EF001596) | Plastic |
| With lock (EF006306) | Yes |
| Mounting method (EF000003) | Surface mounted |
| Suitable for outdoor use (EF003532) | Yes |
| Number of openings for flange plates (EF009554) | 0 |
| Cover model (EF009212) | Closed |
| Material plate thickness cabinet (EF009170) | 2.5 mm |
| Material plate thickness door/cover (EF009171) | 2.5 mm |
| Surface protection (EF000139) | Untreated |
| RAL-number (EF000116) | 7035 |
| Built-in depth (EF000218) | 165 mm |
| Type of covering (EF000339) | Door |
| With mounting plate (EF000118) | No |
| Suitable for lightning protection (EF007800) | Yes |
| Extension possible (EF001088) | No |
| Impact strength (EF004293) | IK09 |
| Depth (EF000049) | 160 mm |
| Protection class according to IEC 61140 (EF000004) | II |
| Circuit integrity (EF001613) | None |
| Colour (EF000007) | Grey |
| Width (EF000008) | 200 mm |
