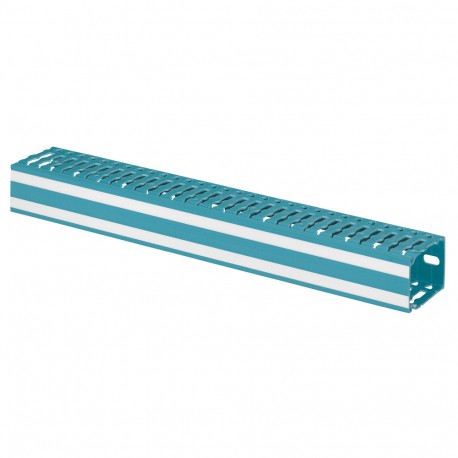

LEGRAND 036225 036225 LEGRAND CHANNEL CABLE LINA-25 120 X 80 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

036225 LEGRAND CHANNEL CABLE LINA-25 120 X 80

036225

036225

LEGRAND

16 m.

CHANNEL CABLE LINA-25 120 X 80 Cable ducting Lina 25 - width 120 x height 80 mm - blue 2525 - L. 2 m Lina Channel 25 - 80x120mm - L. 2m

Cables > Slotted cable trunking system
CABINET CABLE TRUNKING

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Organize high-density control panel wiring with the Legrand 036225 channel cable lina-25 120 x 80. Wiring ducts and channels offer structured pathways to safely route electrical conductors, separating circuits and protecting wires from physical wear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Distance of slots (EF005246): 6.5 mm
  • Height (EF000040): 80 mm
  • With cover (EF007965): Yes
  • Self-extinguishing (EF000681): Yes
  • Type of side wall (EF000098): Hole-/slot punching
  • Material (EF002169): Acrylonitrile butadiene styrene (ABS)
  • Halogen free (EF000025): No
  • Type of fastening (EF002442): Bottom perforation
  • Slit width (EF005247): 6 mm
  • Flexible (EF000083): No
  • Useful cross section (EF005140): 8730 mm²
  • Colour (EF000007): Blue
  • Length (EF001438): 2000 mm
  • Width (EF000008): 120 mm

More info

▲
  • Pack (number of units)16
  • Volume (dm3)108.00
  • Weight (g)20 552.00
Product characteristics
Lina 25 ducting
  • PVC - Blue 2525 according to AFNOR NF X08-002
  • Conform to EN 50085-2-3
  • 6.5 mm wide fingers with a 6 mm spacing
  • Accepts up to 6 mm² without breaking side wall fingers
  • Two pre-scored lines allow removal of fingers
  • Bump on side wall fingers help cabling
  • Rounded fingers prevent injury during cabling
  • Conform to EN 50085 parts 2 and 3
  • Plastic cable ducting (base + cover)
  • Side perforations at intervals of 12.5 mm. Length: 2 m
  • Width x height : 120 x 80 mm
General characteristics
Lina 25™ ducting and halogen-free trunking
