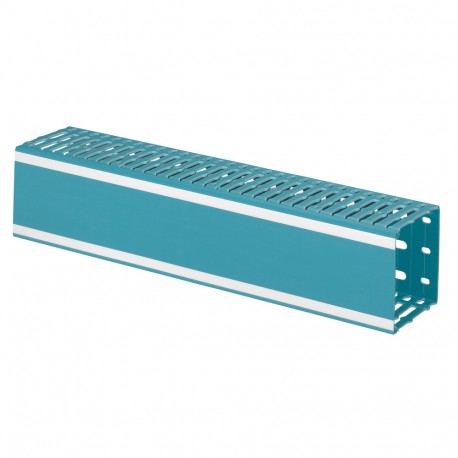

036217 LEGRAND CHANNEL CABLE LINA-25 80X80
036217
036217
LEGRAND
24 m.
Cables > Slotted cable trunking system
CABINET CABLE TRUNKING
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A channel cable is an enclosed plastic trunking system designed for mounting inside electrical switchboards to bundle and secure control wires. This blue Legrand 036217 Lina-25 model offers structured side walls for clean cable exits and reliable insulation properties. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Distance of slots (EF005246): 6.5 mm
- Height (EF000040): 80 mm
- With cover (EF007965): Yes
- Self-extinguishing (EF000681): Yes
- Type of side wall (EF000098): Hole-/slot punching
- Material (EF002169): Acrylonitrile butadiene styrene (ABS)
- Halogen free (EF000025): No
- Type of fastening (EF002442): Bottom perforation
- Slit width (EF005247): 6 mm
- Flexible (EF000083): No
- Useful cross section (EF005140): 5716 mm²
- Colour (EF000007): Blue
- Length (EF001438): 2000 mm
- Width (EF000008): 80 mm
More info
▲- Pack (number of units)24
- Volume (dm3)108.00
- Weight (g)21 800.00
- PVC - Blue 2525 according to AFNOR NF X08-002
- Conform to EN 50085-2-3
- 6.5 mm wide fingers with a 6 mm spacing
- Accepts up to 6 mm² without breaking side wall fingers
- Two pre-scored lines allow removal of fingers
- Bump on side wall fingers help cabling
- Rounded fingers prevent injury during cabling
- Conform to EN 50085 parts 2 and 3
- Plastic cable ducting (base + cover)
- Side perforations at intervals of 12.5 mm. Length: 2 m
- Width x height : 80 x 80 mm
