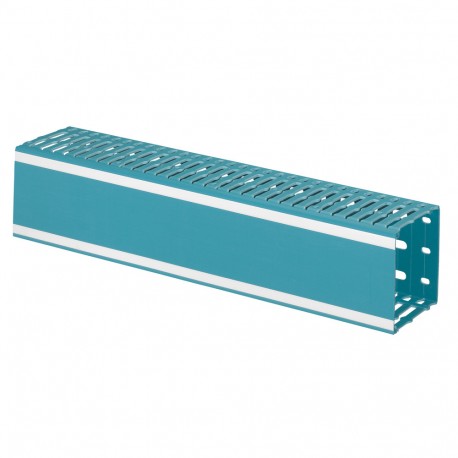

LEGRAND 036212 036212 LEGRAND CHANNEL CABLE LINA-25 60X60 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

036212 LEGRAND CHANNEL CABLE LINA-25 60X60

036212

036212

LEGRAND

32 m.

CHANNEL CABLE LINA-25 60X60 Cable ducting Lina 25 - width 60 x height 60 mm - blue 2525 - L. 2 m Lina Channel 25 - 60x60mm - L. 2m

Cables > Slotted cable trunking system
CABINET CABLE TRUNKING

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand channel cable lina-25 60x60 (part number 036212) is an industrial wiring duct designed to route, group, and protect internal conductors within electrical cabinets. By keeping complex wiring harnesses organized and securely housed, these channels support efficient troubleshooting and maintain high standards of panel safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Distance of slots (EF005246): 6.5 mm
  • Height (EF000040): 60 mm
  • With cover (EF007965): Yes
  • Self-extinguishing (EF000681): Yes
  • Type of side wall (EF000098): Hole-/slot punching
  • Material (EF002169): Acrylonitrile butadiene styrene (ABS)
  • Halogen free (EF000025): No
  • Type of fastening (EF002442): Bottom perforation
  • Slit width (EF005247): 6 mm
  • Flexible (EF000083): No
  • Useful cross section (EF005140): 3115 mm²
  • Colour (EF000007): Blue
  • Length (EF001438): 2000 mm
  • Width (EF000008): 60 mm

More info

▲
  • Pack (number of units)32
  • Volume (dm3)86.00
  • Weight (g)21 000.00
Product characteristics
Lina 25 ducting
  • PVC - Blue 2525 according to AFNOR NF X08-002
  • Conform to EN 50085-2-3
  • 6.5 mm wide fingers with a 6 mm spacing
  • Accepts up to 6 mm² without breaking side wall fingers
  • Two pre-scored lines allow removal of fingers
  • Bump on side wall fingers help cabling
  • Rounded fingers prevent injury during cabling
  • Conform to EN 50085 parts 2 and 3
  • Plastic cable ducting (base + cover)
  • Side perforations at intervals of 12.5 mm. Length: 2 m
  • Width x height : 60 x 60 mm
General characteristics
Lina 25™ ducting and halogen-free trunking
