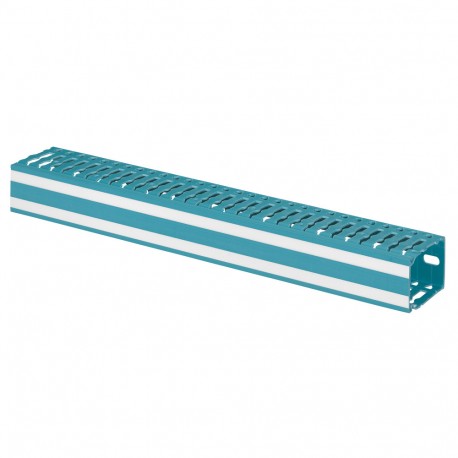

036207 LEGRAND CHANNEL CABLE LINA-25 40X60
036207
036207
LEGRAND
48 m.
CHANNEL CABLE LINA-25 40X60
Cable ducting Lina 25 - width 40 x height 60 mm - blue 2525 - L. 2 m
Lina Channel 25 - 60x40mm - L. 2m
Cables > Slotted cable trunking system
CABINET CABLE TRUNKING
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)48
- Volume (dm3)90.00
- Weight (g)22 400.00
Product characteristics
Lina 25 ducting- PVC - Blue 2525 according to AFNOR NF X08-002
- Conform to EN 50085-2-3
- 6.5 mm wide fingers with a 6 mm spacing
- Accepts up to 6 mm² without breaking side wall fingers
- Two pre-scored lines allow removal of fingers
- Bump on side wall fingers help cabling
- Rounded fingers prevent injury during cabling
- Conform to EN 50085 parts 2 and 3
- Plastic cable ducting (base + cover)
- Side perforations at intervals of 12.5 mm. Length: 2 m
- Width x height : 40 x 60 mm
General characteristics
Lina 25™ ducting and halogen-free trunking| Feature Name | Feature Value |
|---|---|
| Distance of slots (EF005246) | 6.5 mm |
| Height (EF000040) | 60 mm |
| With cover (EF007965) | Yes |
| Self-extinguishing (EF000681) | Yes |
| Type of side wall (EF000098) | Hole-/slot punching |
| Material (EF002169) | Acrylonitrile butadiene styrene (ABS) |
| Halogen free (EF000025) | No |
| Type of fastening (EF002442) | Bottom perforation |
| Slit width (EF005247) | 6 mm |
| Flexible (EF000083) | No |
| Useful cross section (EF005140) | 2008 mm² |
| Colour (EF000007) | Blue |
| Length (EF001438) | 2000 mm |
| Width (EF000008) | 40 mm |
