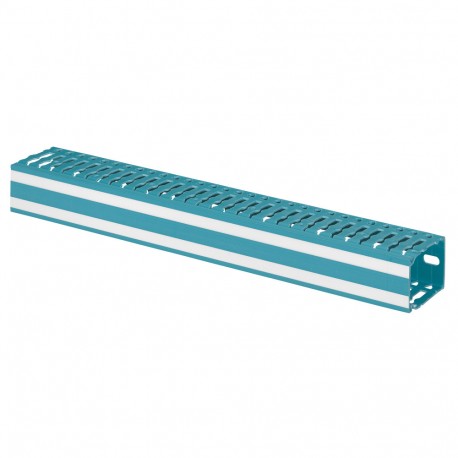

LEGRAND 036202 036202 LEGRAND CHANNEL CABLE LINA-25 25X60 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

036202 LEGRAND CHANNEL CABLE LINA-25 25X60

036202

036202

LEGRAND

56 m.

CHANNEL CABLE LINA-25 25X60 Cable ducting Lina 25 - width 25 x height 60 mm - blue 2525 - L. 2 m Lina Channel 25 - 60x25mm - L. 2m

Cables > Slotted cable trunking system
CABINET CABLE TRUNKING

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 036202 Legrand channel cable lina-25 25x60 is a structured wiring duct implemented in control cabinets to maintain orderly cable routing and safeguard internal circuitry. Such channels provide robust physical containment for automation wiring while supporting efficient panel layout design. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Distance of slots (EF005246): 6.5 mm
  • Height (EF000040): 60 mm
  • With cover (EF007965): Yes
  • Self-extinguishing (EF000681): Yes
  • Type of side wall (EF000098): Hole-/slot punching
  • Material (EF002169): Acrylonitrile butadiene styrene (ABS);
  • Halogen free (EF000025): No
  • Type of fastening (EF002442): Bottom perforation
  • Slit width (EF005247): 6 mm
  • Flexible (EF000083): No
  • Useful cross section (EF005140): 1159 mm²
  • Colour (EF000007): Blue
  • Length (EF001438): 2000 mm
  • Width (EF000008): 25 mm

More info

▲
  • Pack (number of units)56
  • Volume (dm3)71.00
  • Weight (g)24 400.00
Product characteristics
Lina 25 ducting
  • PVC - Blue 2525 according to AFNOR NF X08-002
  • Conform to EN 50085-2-3
  • 6.5 mm wide fingers with a 6 mm spacing
  • Accepts up to 6 mm² without breaking side wall fingers
  • Two pre-scored lines allow removal of fingers
  • Bump on side wall fingers help cabling
  • Rounded fingers prevent injury during cabling
  • Conform to EN 50085 parts 2 and 3
  • Plastic cable ducting (base + cover)
  • Side perforations at intervals of 12.5 mm. Length: 2 m
  • Width x height : 25 x 60 mm
General characteristics
Lina 25™ ducting and halogen-free trunking
