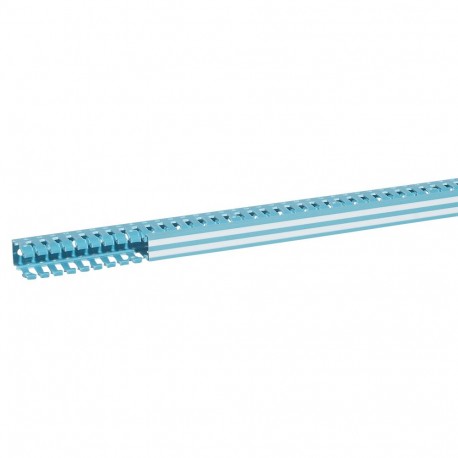

LEGRAND 036201 036201 LEGRAND CHANNEL CABLE LINA-25 25-BY-40 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

036201 LEGRAND CHANNEL CABLE LINA-25 25-BY-40

036201

036201

LEGRAND

56 m.

CHANNEL CABLE LINA-25 25-BY-40 Cable ducting Lina 25 - width 25 x height 40 mm - blue 2525 - L. 2 m Lina Channel 25 - 40x25mm - L. 2m

Cables > Slotted cable trunking system
CABINET CABLE TRUNKING

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Routing electrical conductors efficiently inside control panels is achieved with the Legrand 036201 channel cable lina-25 25-by-40. Electrical enclosures utilize these channels to secure and separate internal wiring runs neatly and safely.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Distance of slots (EF005246): 6.5 mm
  • Height (EF000040): 40 mm
  • With cover (EF007965): Yes
  • Self-extinguishing (EF000681): Yes
  • Type of side wall (EF000098): Hole-/slot punching
  • Material (EF002169): Acrylonitrile butadiene styrene (ABS)
  • Halogen free (EF000025): No
  • Type of fastening (EF002442): Bottom perforation
  • Slit width (EF005247): 6 mm
  • Flexible (EF000083): No
  • Useful cross section (EF005140): 720 mm²
  • Colour (EF000007): Blue
  • Length (EF001438): 2000 mm
  • Width (EF000008): 25 mm

More info

▲
  • Pack (number of units)56
  • Volume (dm3)53.434
  • Weight (g)19 610.00
Product characteristics
Lina 25 ducting
  • PVC - Blue 2525 according to AFNOR NF X08-002
  • Conform to EN 50085-2-3
  • 6.5 mm wide fingers with a 6 mm spacing
  • Accepts up to 6 mm² without breaking side wall fingers
  • Two pre-scored lines allow removal of fingers
  • Bump on side wall fingers help cabling
  • Rounded fingers prevent injury during cabling
  • Conform to EN 50085 parts 2 and 3
  • Plastic cable ducting (base + cover)
  • Side perforations at intervals of 12.5 mm. Length: 2 m
  • Width x height : 25 x 40 mm
General characteristics
Lina 25™ ducting and halogen-free trunking
