View larger
Images are for illustrative purposes only. Please refer to data sheet for details

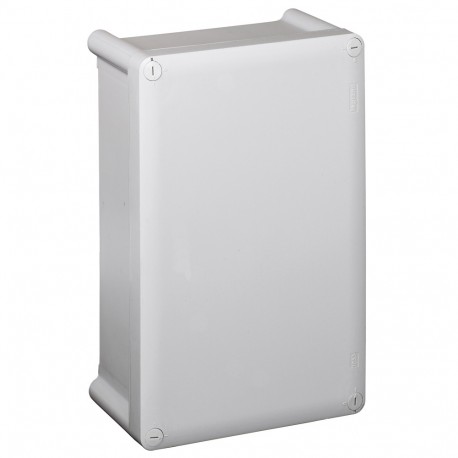

035970 LEGRAND CX.IND.270X170X86 TMP OP.
035970
035970
LEGRAND
1 Pcs.
CX.IND.270X170X86 TMP OP.
Plexo IP55 Weatherproof Box with Plain Cover 270mm x 170mm x 86mm
Plexo IP55- IK07 box, rectangular, 270x170x86mm. No tickets. Grey
Automation > Empty cabinet
JUNCTION BOXES PLEXUS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
IP 55 - IK 07 Grey RAL 7035 Conform to EN 60695-2-1 Temperature rating: - 25°C to + 40°C Undrilled with smooth sides Accepts Cat. No. 0358 01 hinges Weatherproof boxes - class II Self-extinguishing 750°C Polypropylene box Plain cover: polypropylene(3) Transparent cover: polycarbonate Halogen free Class II protection ensured by the mounting screw protection plugs Detachable clip-on cover retainer (except 310 x 240 and 360 x 270 boxes) Side mounts for IP2x terminals provided (except for 130 x 75 x 74mm boxes) 1/4 turn fixings to seal cover With fixing slots for easy alignment Option mounting equipment on rail or plain plate
| Mounting method | Surface mounted |
|---|---|
| Type of covering | Cover |
| Cover model | Closed |
| Type of door | None |
| Transparent cover/door | No |
| With lock | No |
| Height | 290 mm |
| Width | 190 mm |
| Depth | 94 mm |
| Built-in depth | 94 mm |
| Inner depth | 86 mm |
| Material plate thickness cabinet | 2 mm |
| Material plate thickness door/cover | 2 mm |
| Colour | Grey |
| RAL-number | 7035 |
| Number of openings for flange plates | 0 |
| Extension possible | No |
|---|---|
| Number of conduit inlets | 0 |
| Housing material | Plastic |
| Surface protection | Untreated |
| With mounting plate | No |
| Suitable for outdoor use | Yes |
| Suitable for lightning protection | Yes |
| Degree of protection (IP) | IP55 |
| Degree of protection (NEMA) | 3S |
| Protection class according to IEC 61140 | II |
| degree of impact strength (IK) | IK08 |
| Circuit integrity | Other |
| Cover with overpressure release | No |
| Operating / setting temperature | -25-40 °C |
| Storage temperature | -25-70 °C |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 290 mm |
| Type of door (EF004464) | None |
| Degree of protection (IP) (EF005474) | IP55 |
| Inner depth (EF001131) | 86 mm |
| Transparent cover/door (EF006244) | No |
| Housing material (EF001596) | Plastic |
| With lock (EF006306) | No |
| Mounting method (EF000003) | Surface mounted |
| Suitable for outdoor use (EF003532) | Yes |
| Number of openings for flange plates (EF009554) | 0 |
| Cover model (EF009212) | Closed |
| Degree of protection (NEMA) (EF011959) | 3S |
| Material plate thickness cabinet (EF009170) | 2 mm |
| Material plate thickness door/cover (EF009171) | 2 mm |
| Cover with overpressure release (EF015940) | No |
| Surface protection (EF000139) | Untreated |
| RAL-number (EF000116) | 7035 |
| Built-in depth (EF000218) | 94 mm |
| Type of covering (EF000339) | Cover |
| With mounting plate (EF000118) | No |
| Number of conduit inlets (EF000437) | 0 |
| Suitable for lightning protection (EF007800) | Yes |
| Extension possible (EF001088) | No |
| Impact strength (EF004293) | IK08 |
| Depth (EF000049) | 94 mm |
| Protection class according to IEC 61140 (EF000004) | II |
| Circuit integrity (EF001613) | Other |
| Colour (EF000007) | Grey |
| Width (EF000008) | 190 mm |
