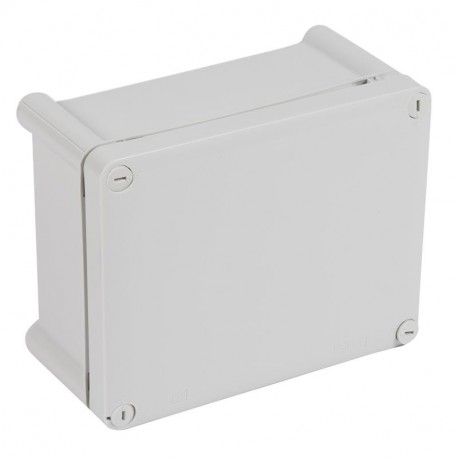

LEGRAND 035956 035956 LEGRAND BOX PLEXUS 180X140X92 S/ENT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

035956 LEGRAND BOX PLEXUS 180X140X92 S/ENT

035956

035956

LEGRAND

1 Pcs.

BOX PLEXUS 180X140X92 S/ENT Box Plexus - IP 55 - IK 07 - rectangular - 180x140x786 mm - no entries Plexo IP55- IK07 box, rectangular, 180x140x92mm. No tickets. Grey

Automation > Empty cabinet
JUNCTION BOXES PLEXUS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand box Plexus 035956 is a durable plastic junction housing utilized to protect terminal connections and small control devices in harsh operational environments. Surface-mounted junction boxes safeguard electrical splices from ambient moisture, dust, and mechanical wear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 200 mm
  • Degree of protection (IP) (EF005474): IP55
  • Inner depth (EF001131): 86 mm
  • Transparent cover/door (EF006244): No
  • Housing material (EF001596): Plastic
  • With lock (EF006306): No
  • Mounting method (EF000003): Surface mounted
  • Suitable for outdoor use (EF003532): Yes
  • Number of openings for flange plates (EF009554): 0
  • Cover model (EF009212): Closed
  • Degree of protection (NEMA) (EF011959): 3S
  • Material plate thickness cabinet (EF009170): 2 mm
  • Material plate thickness door/cover (EF009171): 2 mm
  • Cover with overpressure release (EF015940): No
  • Surface protection (EF000139): Untreated
  • RAL-number (EF000116): 7035

More info

▲

Product features

Boxes class II - Grey RAL 7035 - 180 x 140 x 86 mm - No entries

General characteristics

Boxes for watertight Plexus IP 55 - IK 07 - Self-extinguishing 750 ° C (EN 60695 2-10) - operating Temperature -25 ºC to + 40 ºC - Close by 1/4 turn. - Visulalización of the position open / closed (I/O) - mounting: - For 2 or 4 internal points with screws Ø5mm maximum - For the 4 angles (out of the volume of wiring) - For the legs of fixation, ref. 0 358 02 - dull Cap
