View larger
Images are for illustrative purposes only. Please refer to data sheet for details

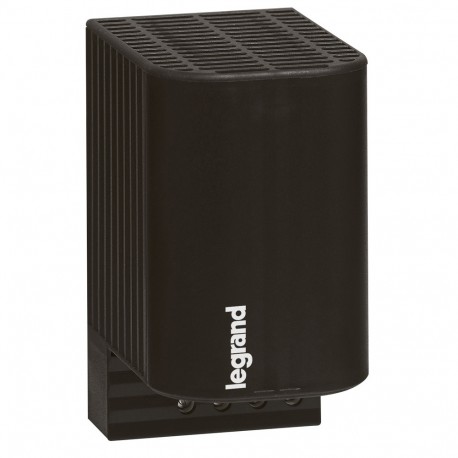

035308 LEGRAND ACC ARM HEATER 100W
035308
035308
LEGRAND
1 Pcs.
ACC ARM HEATER 100W
Legrand Enclosure 100W Resistance Heater
Heating resistance - 120 - 240V~ - IP20 - 100 W
Automation > Heating (switchgear cabinet)
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Heating Resistance heaters 120V / 240V~= IP20 Prevent condensation forming inside the enclosure 'PTC' auto-regulated and surface temperature limited: t = 70°C Heat dissipator in black aluminium oxide Fix on rail
| Rated power | 100 W |
|---|---|
| Operating voltage AC 50 Hz | 120-240 V |
| Operating voltage AC 60 Hz | 120-240 V |
| Operating voltage DC | 120-240 V |
| Voltage type | AC/DC |
| With fan | No |
| With room temperature controller | No |
|---|---|
| Continuous heating power at 10 °C | 100 W |
| Width | 60 mm |
| Height | 110 mm |
| Depth | 90 mm |
| Degree of protection (IP) | IP20 |
| Feature Name | Feature Value |
|---|---|
| Operating voltage AC 50 Hz (EF008206) | 120 V |
| Height (EF000040) | 110 mm |
| Operating voltage AC 60 Hz (EF008207) | 120 V |
| With fan (EF002196) | No |
| Operating voltage DC (EF008208) | 120 V |
| Degree of protection (IP) (EF005474) | IP20 |
| Voltage type (EF000187) | AC/DC |
| With room temperature controller (EF001136) | No |
| Continuous heating power at 10 °C (EF011919) | 100 W |
| Rated power (EF007051) | 100 W |
| Depth (EF000049) | 90 mm |
| Width (EF000008) | 60 mm |
