034817 LEGRAND FAN 30/160M3
034817
034817
LEGRAND
1 Pcs.
FAN 30/160M3
Legrand Enclosure Ventilation Fan 30/160m³/h with Metal Louvres and Grills
Fan 30/160 m³/h - RAL 7035 - with metal grid - IP32- IK10
Automation > Ventilator (switchgear cabinet)
ATLANTIC-MARINA CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲

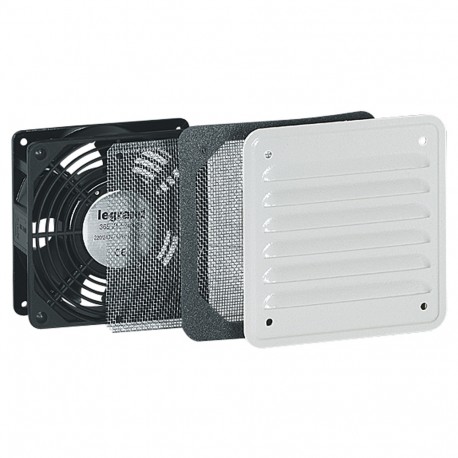

Ventilation fan kit with metal grill IP 32 - IK 10 230V - 50/60 Hz RAL 7035 Ventilator is mounted on the outside of the enclosure 30 m³/h with filter - 160 m³/h without filter installed (free flowing) Pack comprising a pair of metal RAL 7035 louvres and a pair of anti-insect grills, plus internal finger protection
| Number of fans | 1 |
|---|---|
| Operating voltage AC 50 Hz | 230-240 V |
| Operating voltage AC 60 Hz | 230-240 V |
| Voltage type | AC |
| Suitable for wall built-in | Yes |
| Built as slide-in ventilator | No |
| Air circulator | No |
| Roof ventilator | No |
| With filter | No |
| Volume flow, freeblowing | 160 m³/h |
| Rated power | 22 W |
|---|---|
| Degree of protection (IP) | IP32 |
| Mounting method | Screw mounting |
| Suitable for 19 inch rack mounting | No |
| Colour | Grey |
| RAL-number | 7035 |
| Width | 138 mm |
| Height | 138 mm |
| Depth | 40 mm |
| Feature Name | Feature Value |
|---|---|
| Operating voltage AC 50 Hz (EF008206) | 230 V |
| Suitable for wall built-in (EF007536) | Yes |
| Operating voltage AC 60 Hz (EF008207) | 230 V |
| Height (EF000040) | 138 mm |
| With filter (EF006013) | No |
| Air circulator (EF007516) | No |
| Degree of protection (IP) (EF005474) | IP32 |
| Voltage type (EF000187) | AC |
| Built as slide-in ventilator (EF007126) | No |
| Mounting method (EF000003) | Screw mounting |
| Roof ventilator (EF007099) | No |
| Rated power (EF007051) | 22 W |
| Volume flow, freeblowing (EF007173) | 160 m³/h |
| Number of fans (EF000928) | 1 |
| Depth (EF000049) | 40 mm |
| Suitable for 19 inch rack mounting (EF000337) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 138 mm |
