View larger
Images are for illustrative purposes only. Please refer to data sheet for details

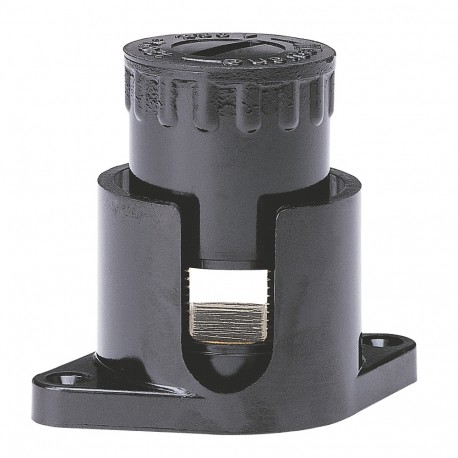

034045 LEGRAND TERMINALS CLICK 2X75 MM2
034045
034045
LEGRAND
10 Pcs.
TERMINALS CLICK 2X75 MM2
Nylbloc Non-Shear Hexagonal Head Line Tap with Feet 2mm² x 75mm²
Anti-shear terminal block 2x75mm². Cable pitch 11.7mm. Height 71mm
Automation > Single- and multi-pole terminal strip
STEP TERMINALS AND TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Explosion-tested version 'Ex e' | No |
|---|---|
| Connectable conductor cross section fine-strand without cable end sleeve | 75-75 mm² |
| Connectable conductor cross section solid-core | 75-75 mm² |
| Connectable conductor cross section multi-wired | 75-75 mm² |
| Type of electrical connection 1 | Other |
| Type of electrical connection 2 | Screw connection |
| Number of poles | 1 |
| Mounting method | Other |
| Material insulation body | Thermoplastic |
|---|---|
| Inflammability class of insulation material according to UL94 | Other |
| Width | 78 mm |
| Height | 71 mm |
| Depth | 40 mm |
| Closing plate required | No |
| Colour | Black |
| Transparent | No |
| Feature Name | Feature Value |
|---|---|
| Connectable conductor cross section solid-core (EF007337) | 75 mm² |
| Height (EF000040) | 71 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | Other |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 75 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 75 mm² |
| Explosion-tested version 'Ex e' (EF008498) | No |
| Transparent (EF006243) | No |
| Number of poles (EF001391) | 1 |
| Closing plate required (EF002525) | No |
| Depth (EF000049) | 40 mm |
| Type of electrical connection 1 (EF002526) | Other |
| Colour (EF000007) | Black |
| Width (EF000008) | 78 mm |
| Type of electrical connection 2 (EF002527) | Screw connection |
