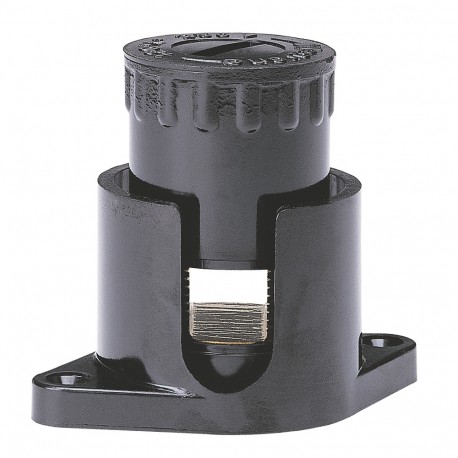

LEGRAND 034044 034044 LEGRAND TERMINALS CLICK 2X50 MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

034044 LEGRAND TERMINALS CLICK 2X50 MM2

034044

034044

LEGRAND

10 Pcs.

TERMINALS CLICK 2X50 MM2 Nylbloc Non-Shear Hexagonal Head Line Tap with Feet 2mm² x 50mm² Shear terminal block 2x50mm². Cable pitch 9.5mm. Height 59mm

Automation > Single- and multi-pole terminal strip
STEP TERMINALS AND TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy-duty power distribution, the 034044 LEGRAND TERMINALS CLICK 2X50 MM2 functions as a secure connection block for high-capacity conductors in electrical control panels. These terminal components ensure reliable physical and electrical contact for larger cables in industrial setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Connectable conductor cross section solid-core (EF007337): 50 mm²
  • Height (EF000040): 59 mm
  • Material insulation body (EF007543): Thermoplastic
  • Connectable conductor cross section multi-wired (EF007343): 50 mm²
  • Explosion-tested version 'Ex e' (EF008498): No
  • Transparent (EF006243): No
  • Number of poles (EF001391): 1
  • Closing plate required (EF002525): No
  • Depth (EF000049): 30.8 mm
  • Colour (EF000007): Black
  • Width (EF000008): 55 mm
  • Type of electrical connection 2 (EF002527): Screw connection

More info

▲
Explosion-tested version 'Ex e'No
Connectable conductor cross section fine-strand without cable end sleeve50-50 mm²
Connectable conductor cross section solid-core50-50 mm²
Connectable conductor cross section multi-wired50-50 mm²
Type of electrical connection 1Other
Type of electrical connection 2Screw connection
Number of poles1
Mounting methodOther
Material insulation bodyThermoplastic
Inflammability class of insulation material according to UL94Other
Width55 mm
Height59 mm
Depth30.8 mm
Closing plate requiredNo
ColourBlack
TransparentNo

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
