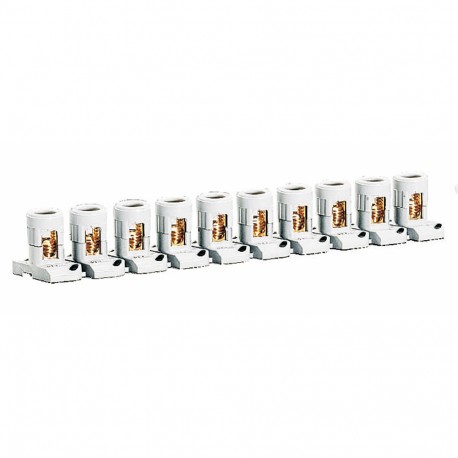

LEGRAND 034002 034002 LEGRAND STRIP STEP 2X16 MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

034002 LEGRAND STRIP STEP 2X16 MM2

034002

034002

LEGRAND

10 Pcs.

STRIP STEP 2X16 MM2 Nylbloc Line Tap with Feet 2mm² x 16mm² (Supplied in Strip) Supreme pass-through strip. 10 separable terminals with capacity 2x16² Step 21

Automation > Single- and multi-pole terminal strip
STEP TERMINALS AND TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 034002 terminal strip facilitates secure conductor distribution in electrical panels, joining multiple wires within a compact thermoplastic enclosure. Strip steps are widely deployed in commercial and industrial distribution boards to manage branch circuits and maintain orderly power routing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Connectable conductor cross section solid-core (EF007337): 16 mm²
  • Height (EF000040): 28 mm
  • Material insulation body (EF007543): Thermoplastic
  • Connectable conductor cross section multi-wired (EF007343): 16 mm²
  • Explosion-tested version 'Ex e' (EF008498): No
  • Transparent (EF006243): No
  • Operating temperature (EF002393): -5 °C
  • Rated current In (EF008250): 63 A
  • Number of poles (EF001391): 1
  • Closing plate required (EF002525): No
  • Depth (EF000049): 27 mm
  • Type of electrical connection 1 (EF002526): Screw connection
  • Colour (EF000007): Grey
  • Width (EF000008): 218 mm
  • Number of clamp positions per pole (EF002519): 1
  • Rated voltage (EF000228): 230 V

More info

▲
Explosion-tested version 'Ex e'No
Connectable conductor cross section fine-strand without cable end sleeve16-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve10-10 mm²
Connectable conductor cross section solid-core16-16 mm²
Connectable conductor cross section multi-wired16-16 mm²
Rated current In63 A
Rated voltage230 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of poles1
Number of clamp positions per pole1
Mounting methodOther
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Inflammability class of insulation material according to UL94Other
Width218 mm
Height28 mm
Depth27 mm
Closing plate requiredNo
ColourGrey
TransparentNo
