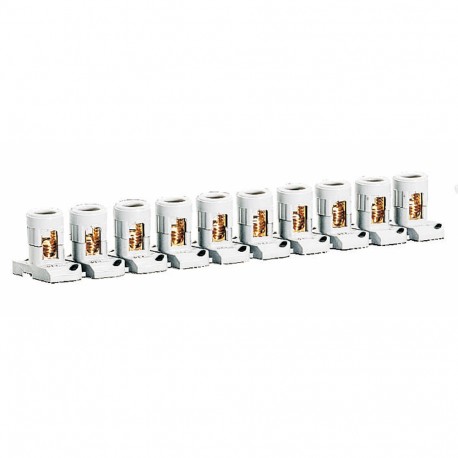

LEGRAND 034001 034001 LEGRAND STRIP STEP 2X10 MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

034001 LEGRAND STRIP STEP 2X10 MM2

034001

034001

LEGRAND

10 Pcs.

STRIP STEP 2X10 MM2 Nylbloc Line Tap with Feet 2mm² x 10mm² (Supplied in Strip) Supreme pass-through strip. 10 separable terminals with capacity 2x10² Step 19.5

Automation > Single- and multi-pole terminal strip
STEP TERMINALS AND TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand strip step 2x10 mm2 (034001) is an electrical terminal accessory used to bridge and organize conductor paths in control panels and distribution systems. Step terminal strips allow technicians to manage multiple circuits compactly while ensuring firm mechanical and electrical fastening. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Connectable conductor cross section solid-core (EF007337): 10 mm²
  • Height (EF000040): 29 mm
  • Material insulation body (EF007543): Thermoplastic
  • Connectable conductor cross section multi-wired (EF007343): 10 mm²
  • Explosion-tested version 'Ex e' (EF008498): No
  • Transparent (EF006243): No
  • Operating temperature (EF002393): -5 °C
  • Rated current In (EF008250): 57 A
  • Number of poles (EF001391): 1
  • Closing plate required (EF002525): No
  • Depth (EF000049): 25 mm
  • Type of electrical connection 1 (EF002526): Screw connection
  • Colour (EF000007): Grey
  • Width (EF000008): 216 mm
  • Number of clamp positions per pole (EF002519): 1
  • Rated voltage (EF000228): 230 V

More info

▲
Explosion-tested version 'Ex e'No
Connectable conductor cross section fine-strand without cable end sleeve10-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve6-6 mm²
Connectable conductor cross section solid-core10-10 mm²
Connectable conductor cross section multi-wired10-10 mm²
Rated current In57 A
Rated voltage230 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of poles1
Number of clamp positions per pole1
Mounting methodOther
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Inflammability class of insulation material according to UL94Other
Width216 mm
Height29 mm
Depth25 mm
Closing plate requiredNo
ColourGrey
TransparentNo
