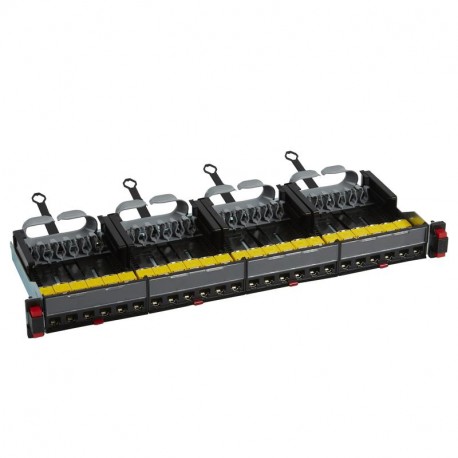

LEGRAND 033770 033770 LEGRAND LCS-PANEL R 24RJ45 CAT6A UTP1U View larger
Images are for illustrative purposes only. Please refer to data sheet for details

033770 LEGRAND LCS-PANEL R 24RJ45 CAT6A UTP1U

033770

033770

LEGRAND

1 Pcs.

LCS-PANEL R 24RJ45 CAT6A UTP1U Flat patch panel equipped with 24 RJ 45 connectors LCS³ - 19" - 1U - Cat.6 A UTP Cat.6A UTP Equipped Straight Patch Panel - 1U

Automation > Patch panel copper (twisted pair)
RJ45 PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 033770 LCS-panel provides an unshielded patch management solution designed to terminate high-speed Category 6A data cables in professional server cabinets. This hardware supports robust bandwidth requirements across modern IT and communication networks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 43.85 mm
  • Number of height units (EF003561): 1
  • Screened (EF000881): No
  • Mounting method (EF000003): 482.6 mm (19 inch) mounting
  • Connection type (EF000124): Insulation displacement connector
  • Number of buses/couplings (EF004395): 24
  • Category (EF001619): 6A (IEC)
  • Depth (EF000049): 321.7 mm
  • Colour (EF000007): Black
  • RAL-number (EF000116): 9017
  • Suitable for number of connectors (EF001579): 24
  • Width (EF000008): 482.5 mm
  • Type of connector (EF002935): RJ45 8(8)

More info

▲
  • Pack (number of units)1
  • Volume (dm3)6.875
  • Weight (g)2 600.00
Product characteristics
Cat. 6A patch panels equipped with 24 RJ 45 connectors
  • 19" panel - 1U
  • Equipped with 4 cassettes of 6 pre-fitted Cat. 6A LCS³ RJ 45 connectors
  • Automatic cassette removal by simple pressure
  • Each connector can be removed individually
  • T568A and B marking with colour codes
  • Equipped with rear cable guide to hold cables during maintenance
  • Supplied with coloured labels
  • Compliant with ISO/IEC 11 801, EN 50173 and ANSI/TIA 568 standards
Flat panels
  • 24 RJ 45 connectors - 1U - PoE++
  • UTP
General characteristics
Legrand cabling system, LCS³ cat. 6A - flat patch panels - equipped
  • Equipped with new-generation Quick-Fix for automatic (screwless) mounting on enclosure and cabinet uprights
  • Universal mounting on all cabinets or enclosures
  • Panels ensure automatic earthing of each connector
  • Equipped with 4 bundles guides fixed at the rear
