View larger
Images are for illustrative purposes only. Please refer to data sheet for details

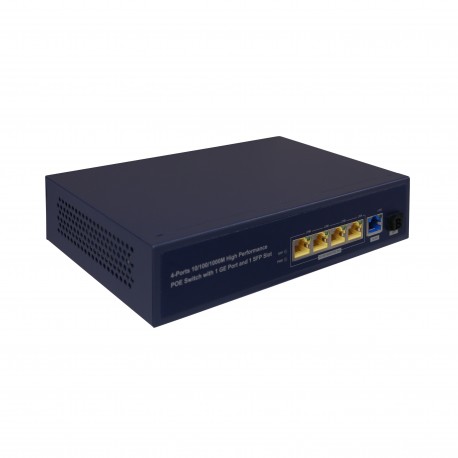

033493 LEGRAND 6-PORT GIGABIT POE SWITCH
033493
033493
LEGRAND
1 Pcs.
6-PORT GIGABIT POE SWITCH
6-Port Gigabit Ethernet PoE Switch
Automation > Network switch
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
6-port Ethernet switch that includes: -1 Gigabit RJ45 and 1 fiber optic SFP uplinks. -4 Gigabit PoE+ Rj45 outputs. Not manageable. Power of the entire device: 65W. Maximum power: 30 W per port.
| Ethernet | Yes |
|---|---|
| Number of 10/100 Mbps RJ45 ports | 0 |
| Number of 10/100/1000 Mbps RJ45 ports | 5 |
| Number of 1000 Mbps RJ45 ports | 0 |
| Number of 10 Gbps RJ45 ports | 0 |
| Number of 10 Gbps GBIC ports | 0 |
| Number of 100/1000 Mbps Mini GBIC Ports | 0 |
| Number of 1000 Mbps Mini GBIC Ports | 0 |
| Number of 40 Gbps Mini-GBIC ports | 0 |
| Number of 100 Gbps Mini-GBIC ports | 0 |
| Number of RJ45/Mini GBIC Combo Ports | 0 |
| Number of 1000 Mbps GBIC ports | 0 |
| Number of 10/100 Mbps M12 ports | 0 |
| Number of 100 Mbps SC ports | 0 |
| Number of 1000 Mbps SC (SX) ports | 0 |
| Number of Ports 1000 Mbps SC (LX) | 0 |
| Number of 100 Mbps ST ports | 0 |
| Number of 100 Mbps POF ports | 0 |
| Number of 1000 Mbps POF ports | 0 |
| Number of other ports | 1 |
| Power over Ethernet (PoE) | 802.3 at (PoE+) |
| Number of PoE ports | 4 |
|---|---|
| Max PoE power. | 65 W |
| Type of mounting | Desktop Type |
| Number of module slots | 1 |
| Layer 2 | Yes |
| Layer 3 | No |
| Protection Class (IP) | IP2X |
| Height | 44.5 mm |
| Width | 210 mm |
| Depth | 138 mm |
| Grade2TV compatible according to XP-C 90-483 | Yes |
| Grade3TV compatible according to XP-C 90-483 | Yes |
| Impact resistance | IK04 |
| Operating Temperature | 0-40 °C |
| Storage temperature | -40-70 °C |
| Type of voltage | AC |
| Nominal Voltage | 100-230 V |
| Nominal current | 0.5-0.5 A |
| frequency | 50-60 Hz |
| Colour | Black |
| Feature Name | Feature Value |
|---|---|
| Power over Ethernet (PoE) (EF009714) | 802.3 at (PoE+) |
| Layer 2 (EF004883) | Yes |
| Number of ports 1000 Mbps SC (SX) (EF003551) | 0 |
| Height (EF000040) | 44.5 mm |
| Number of ports 1000 Mbps SC (LX) (EF003552) | 0 |
| Number of ports 1000 Mbps Mini GBIC (EF004321) | 0 |
| Max. PoE power (EF009716) | 65 W |
| Degree of protection (IP) (EF005474) | IP2X |
| Number of ports PoE (EF009715) | 4 |
| Number of module slots (EF003597) | 1 |
| Mounting method (EF000003) | Desk type |
| Number of ports 1000 Mbps POF (EF009910) | 0 |
| Layer 3 (EF004884) | No |
| Number of ports 100 Mbps POF (EF009895) | 0 |
| Number of ports 1000 Mbps GBIC (EF004318) | 0 |
| Number of ports 10/100 Mbps RJ45 (EF003549) | 0 |
| Number of ports 10/100/1000 Mbps RJ45 (EF004316) | 5 |
| Number of ports 10/100 Mbps M12 (EF004315) | 0 |
| Number of other ports (EF007643) | 1 |
| Compatible with Grade3TV according to XP-C 90-483 (EFFR0002) | Yes |
| Compatible with Grade2TV according to XP-C 90-483 (EFFR0001) | Yes |
| Number of ports 10 Gbps Mini GBIC (EF008850) | 0 |
| Number of ports 10 Gbps RJ45 (EF012063) | 0 |
| Depth (EF000049) | 138 mm |
| Ethernet (EF003535) | Yes |
| Number of ports 100 Mbps SC (EF000900) | 0 |
| Width (EF000008) | 210 mm |
| Number of ports 100/1000 Mbps Mini GBIC (EF008849) | 0 |
| Number of ports 40 Gbps Mini GBIC (EF012061) | 0 |
| Number of combination-ports RJ45/Mini GBIC (EF004849) | 0 |
| Number of ports 1000 Mbps RJ45 (EF000902) | 0 |
| Number of ports 100 Gbps Mini GBIC (EF012062) | 0 |
| Number of ports 100 Mbps ST (EF000923) | 0 |
