View larger
Images are for illustrative purposes only. Please refer to data sheet for details

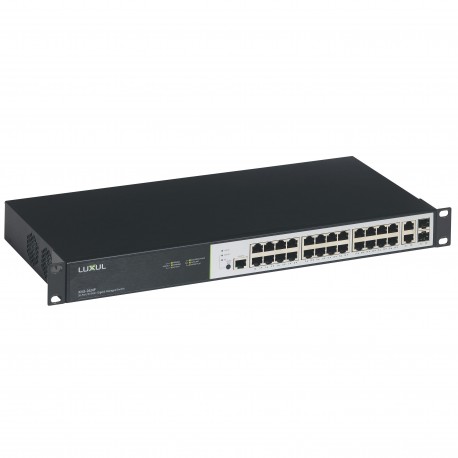

033492 LEGRAND SWITCH GEST 26PORT/24POE+ GB
033492
033492
LEGRAND
1 Pcs.
SWITCH GEST 26PORT/24POE+ GB
PoE Ethernet 19 inch switch with 26 RJ 45 ports (24 PoE+ ports) 1Gb manageable
Managed switch with 24 RJ45 POE+ ports and 2 gigabit ethernet uplink ports
Automation > Network switch
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)2
- Volume (dm3)44.357
- Weight (g)8 652.00
Product characteristics
PoE Ethernet switches- Ethernet switches with PoE and PoE+ EndSpan injector (standard IEEE 802.3af and 802.3at)
- For supplying power to the Ethernet ports of devices (Wi-Fi access point, IP camera, etc)
- Supplied with power supply
- Ethernet switch with 26 RJ 45 ports (24 PoE+ ports)
- 1 Gigabit - Manageable
General characteristics
Legrand cabling system, LCS³ - PoE switches and injectors| Feature Name | Feature Value |
|---|---|
| Power over Ethernet (PoE) (EF009714) | 802.3 at (PoE+) |
| Layer 2 (EF004883) | Yes |
| Number of ports 1000 Mbps SC (SX) (EF003551) | 0 |
| Height (EF000040) | 44.5 mm |
| Number of ports 1000 Mbps SC (LX) (EF003552) | 0 |
| Number of ports 1000 Mbps Mini GBIC (EF004321) | 0 |
| Max. PoE power (EF009716) | 370 W |
| Number of ports PoE (EF009715) | 24 |
| Number of module slots (EF003597) | 2 |
| Mounting method (EF000003) | 482.6 mm (19 inch) mounting |
| Number of ports 1000 Mbps POF (EF009910) | 0 |
| Layer 3 (EF004884) | Yes |
| Number of ports 100 Mbps POF (EF009895) | 0 |
| Manageable (EF004912) | Yes |
| Number of ports 1000 Mbps GBIC (EF004318) | 0 |
| Number of ports 10/100 Mbps RJ45 (EF003549) | 0 |
| Number of ports 10/100/1000 Mbps RJ45 (EF004316) | 26 |
| Number of ports 10/100 Mbps M12 (EF004315) | 0 |
| Number of other ports (EF007643) | 3 |
| Number of ports 10 Gbps Mini GBIC (EF008850) | 0 |
| Depth (EF000049) | 439.5 mm |
| Ethernet (EF003535) | Yes |
| Number of ports 100 Mbps SC (EF000900) | 0 |
| Width (EF000008) | 209.55 mm |
| Number of ports 100/1000 Mbps Mini GBIC (EF008849) | 0 |
| Number of combination-ports RJ45/Mini GBIC (EF004849) | 0 |
| Number of ports 1000 Mbps RJ45 (EF000902) | 0 |
| Number of ports 100 Mbps ST (EF000923) | 0 |
