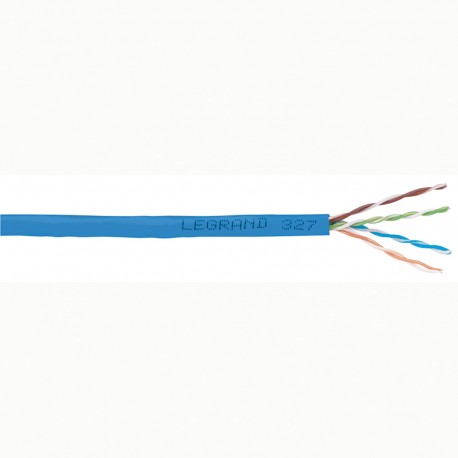

032757 LEGRAND LCS-CABL C6 SF/UTP 4P LSOH 500
032757
032757
LEGRAND
500 m.
LCS-CABL C6 SF/UTP 4P LSOH 500
4 pair Cat.6 F/UTP cable covered PVC 305 m. Supply in coil. Weight 20 kg
Cables > Data and communication cable
VDI CABLES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand component 032757 is an SF/UTP category 6 network cable engineered for high-performance structured IT infrastructure and high-speed data transmission in commercial facilities. Dual-shielded twisted pair cables offer superior protection against electromagnetic interference in demanding data environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Halogen free according to EN IEC 60754-2 (EF003792): Yes
- Cable height approx. (EF003797): 8.1 mm
- Weight (EF000167): 65
- Cable width approx. (EF003796): 8.1 mm
- Duplex (EF023003): No
- Cable type (EF000081): SF/UTP
- Conductor surface (EF010804): Bare
- Oil resistant according to EN IEC 60811-404 (EF009770): No
- Number of stranding elements (EF001688): 4
- With rip cord (EF017088): No
- Suitable for use as security alarm cable (EF017089): No
- Specification material outer sheath (EF011806): Polyethylene (PE)
- Specification core insulation (EF011805): Polyethylene (PE)
- Circuit integrity according to IEC 60331-23 (EF016619): No
- Category (EF001619): 6
- Colour outer sheath (EF001618): Blue
More info
▲
Cat.6 cables 4 or 2x4 twisted pairs 100 Ω Blue RAL 5015 EIA/TIA color code. Compliant with ISO/IEC 11801 edition 2, EN (2017) 50173-1 and EIA/TIA 568C.
| Cable type | SF/UTP |
|---|---|
| Duplex | No |
| Conductor Material | copper |
| Conductor surface | Uncovered |
| Conductor Diameter | 0.56 mm |
| Nominal Conductor Section | 0.25 mm² |
| AWG Gauge | 23 |
| Driver Class | Class 1 = 1-strand rigid |
| Number of threads | 8 |
| Number of Braiding Elements | 4 |
| Braiding element | Pairs |
| Conductor insulation material | Other |
| Conductor insulation specification | Polyethylene (PE) |
| Identification of insulated conductors according to HD 308 S2 | No |
| Type of driver identification | Colour |
| Shielded on braided element | none |
| Stranded | Package |
| Shielded over braided | Blade + braiding |
| Cable with longitudinal sealing | No |
| Radial shutter cable | Yes |
| Suitable for underground installation | No |
| Type of Authorized Underground Installation | Other |
| Protective coating | none |
| Cover material | Other |
| Deck Material Specification | Polyethylene (PE) |
| Outer Cover Color | Blue |
| Shielding/Reinforcement | none |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Low smoke emission according to EN IEC 61034-2 | Yes |
|---|---|
| Halogen-free according to IEC 60754-1 | Yes |
| Halogen-free according to EN IEC 60754-2 | Yes |
| Halogen-free according to IEC 60754-3 | No |
| Reaction class to fire according to EN 13501-6 | none |
| Reaction to fire according to EN 13501-6: Smoke production | none |
| Reaction to fire according to EN 13501-6: Flammable drops/particles | none |
| Reaction to fire according to EN 13501-6: Acidity | none |
| Circuit integrity according to IEC 60331-23 | No |
| Oil-resistant according to EN IEC 60811-404 | No |
| Outer diameter approx. | 8.1 mm |
| Allowed min. bending radius, flexible use with forced guidance | 65 mm |
| Allowed min. bending radius, flexible use/free movement | 65 mm |
| Minimum bending radius allowed, fixed installation | 33 mm |
| Allowable Outside Cable Temperature During Wiring/Handling | 0-50 °C |
| Permissible ambient temperature of the cable after assembly without vibration | -20-60 °C |
| category | 6 |
| NVP Value | 65 % |
| Certified for marine applications | No |
| Suitable as a telephone cable | Yes |
| Suitable as a computer data cable | Yes |
| Suitable as a signal cable | No |
| Suitable for use as a security alarm cable | No |
| Drainage thread | No |
| With rip cable | No |
| Approximate cable width | 8.1 mm |
| Approximate cable height | 8.1 mm |
| Weight | 65 kg/km |
| Characteristic impedance | 100 Ohm |
| Grade2TV compatible according to XP-C 90-483 | No |
| Grade3TV compatible according to XP-C 90-483 | No |
| Storage temperature | -20-60 °C |
| RAL number | 5015 |
