View larger
Images are for illustrative purposes only. Please refer to data sheet for details

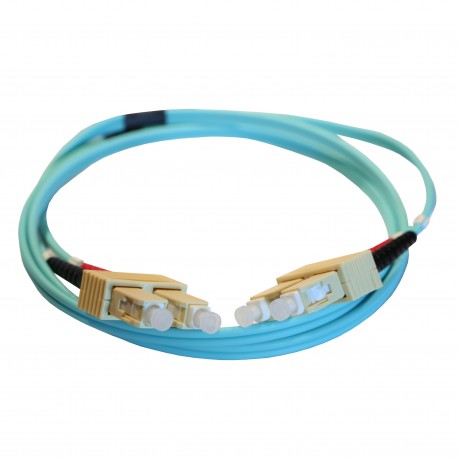

032611 LEGRAND LCS-LAT MM OM3 DX SC/SC 3M
032611
032611
LEGRAND
3 Pcs.
LCS-LAT MM OM3 DX SC/SC 3M
Patch cord fibre optic - OM 3 multimodules (50/125 μm) - SC/SC duplex - 3 m
Multimode duplex patch cord M3 SC/SC L. 3m
Automation > Fibre optic patch cord
OPTICAL FIBER
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)5
- Volume (dm3)3.192
- Weight (g)300.00
Product characteristics
OM3 multimode fibre optic cords (50/125 μm)- Suitable for 10 Gb Ethernet networks
- Max. optical losses/Master: 0.25 dB
- For 50/125 μm multimode installation, OM3 type
- Aqua sheaths
- Length: 3 m
General characteristics
Legrand cabling system, fibre optic LCS³ - patch cords and feedthrough sockets- Fitted at each end with 2 connectors with ceramic ferrule. Individually packed and tested (report supplied)
- LSZH Zipcord sheath
- Other configurations on request
| Feature Name | Feature Value |
|---|---|
| Number of fibres (EF000472) | 2 |
| APC-version connection 2 (EF015704) | No |
| APC-version connection 1 (EF015703) | No |
| Cable type (EF000081) | Duplex |
| Fibre type (EF000080) | Multi mode 50/125 |
| Category (EF001619) | OM3 |
| Colour outer sheath (EF001618) | Turquoise |
| Flame retardant according to IEC 60332-3-24 (Cat C) (EF016496) | Yes |
| Outer diameter sheath single fibre (EF012067) | 2 mm |
| Anti-kink sleeve (EF002435) | Moulded-on |
| Length (EF001438) | 3 m |
| Type of connector connection 1 (EF002505) | SC duplex |
| Type of connector connection 2 (EF002506) | SC duplex |
